SECURE YOUR AIRSPACE

ANTI-DRONE
SYSTEMS

Integrated detection, identification & countermeasure
solutions for comprehensive low-altitude security.

24-Channel

24Channel

Phased Array

Phased Array

Integrated Detection

Integrated Detection

Fixed Detector

Fixed Detector

GPS Spoofing

GPS Spoofing

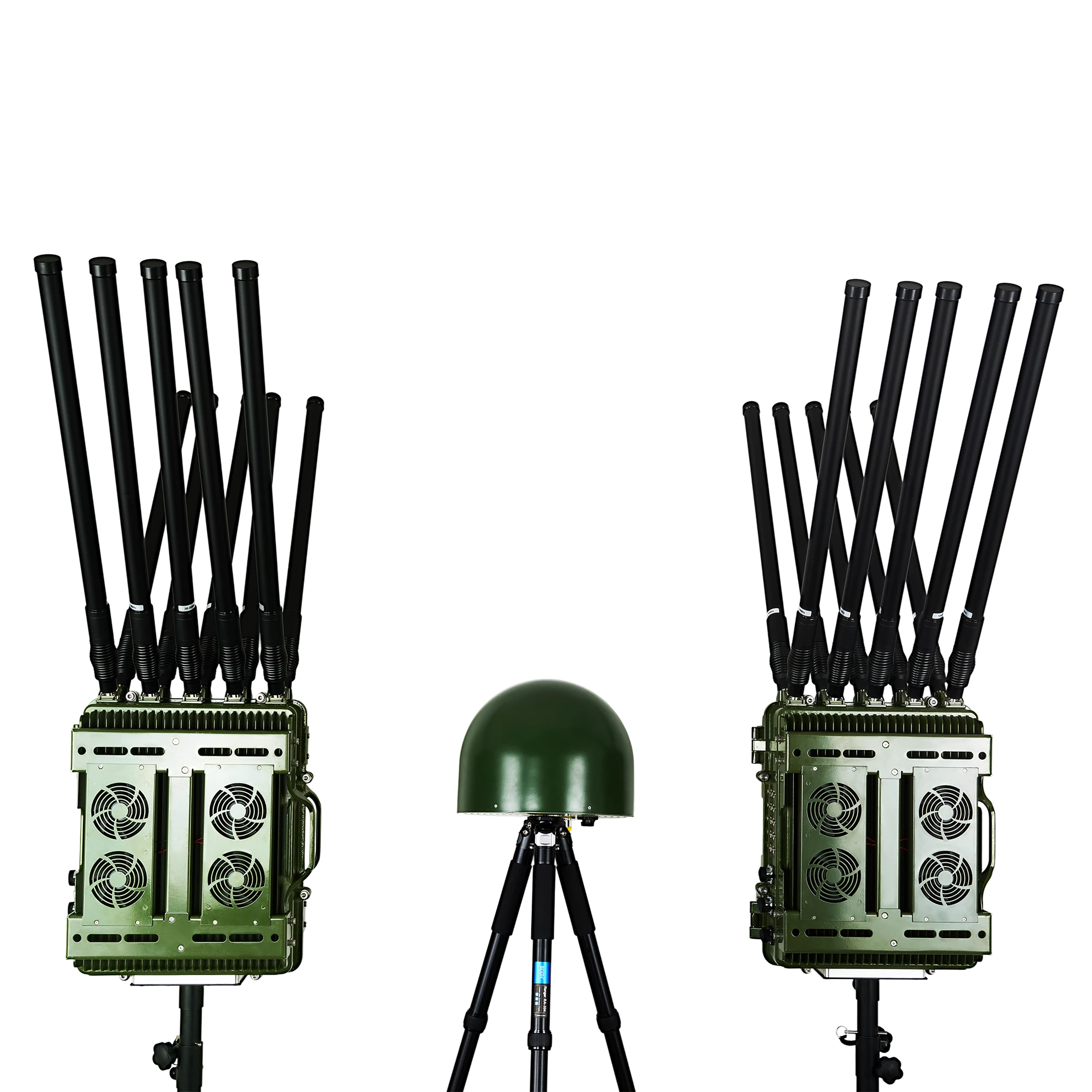

24-CHANNEL

24-Channel UAV
Detection & Countermeasure
System

Integrated Detection, Identification & Signal Management for Low-Altitude Security

This integrated three-unit system combines wideband spectrum detection with high-power multi-band countermeasure capability. Designed for fixed-site deployment, it supports real-time drone signal detection, rapid response, remote control, and 24/7 continuous operation for critical security applications.

System Composition: 2 × Countermeasure Units + 1 × Spectrum Detection Unit
Integrated Architecture: 24-Channel System
Countermeasure Coverage: 110–5950 MHz
Detection Frequencies: 900–1400 MHz / 2.4 GHz / 5.1–5.9 GHz
Output Power: 50W per Channel
Detection Range: Over 2 KM
Countermeasure Range: 1–3 KM
Control Mode: Local Panel + RS485 / Ethernet Remote Control
24/7
Operation: 24/7 Continuous Running
IP65
Protection Level: IP65

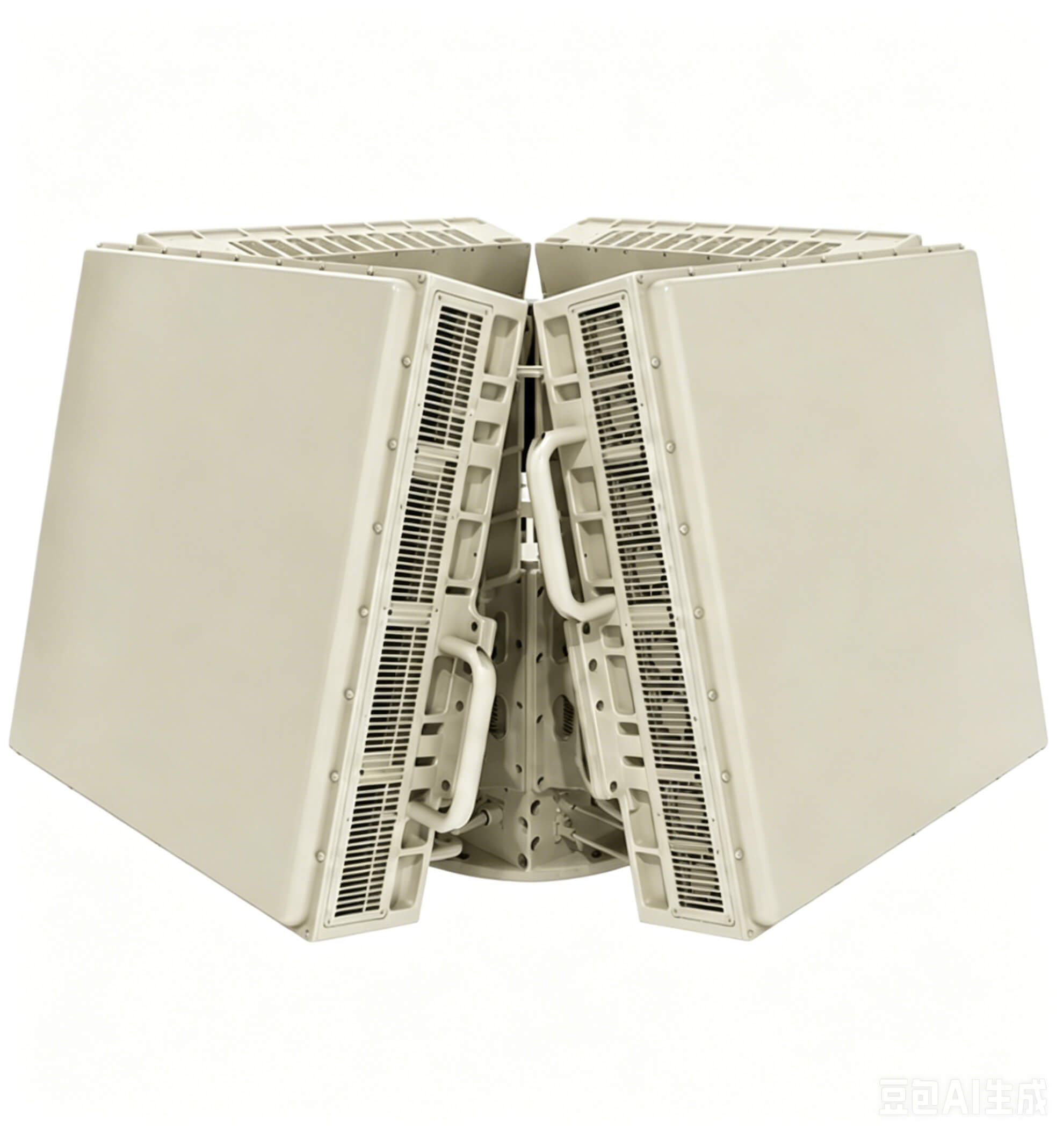

JHR-H15

Four-Sided Phased
Array Radar

X-Band AESA Radar for 360° Low-Altitude Surveillance

Designed as a core sensing unit for integrated airspace security, the JHR-H15 rapidly detects and continuously tracks UAVs, aircraft, birds, vehicles and surface targets with high-precision position and motion data.

Detection Range: ≥15 km; Small UAV: ≥8 km
360° Azimuth Coverage: Elevation: -2° to 45°
Simultaneous Tracking: ≥500 Moving Targets
2.5s
High Refresh Rate: 2.5s TWS / 0.25s TAS
≤10m
Accuracy: ≤10 m Range, ≤0.5° Angle
360° Coverage
Long-Range Detection
Multi-Target Tracking
Operating Temperature: -40°C to +55°C
Power Supply: Ethernet TCP/IP; AC 220V

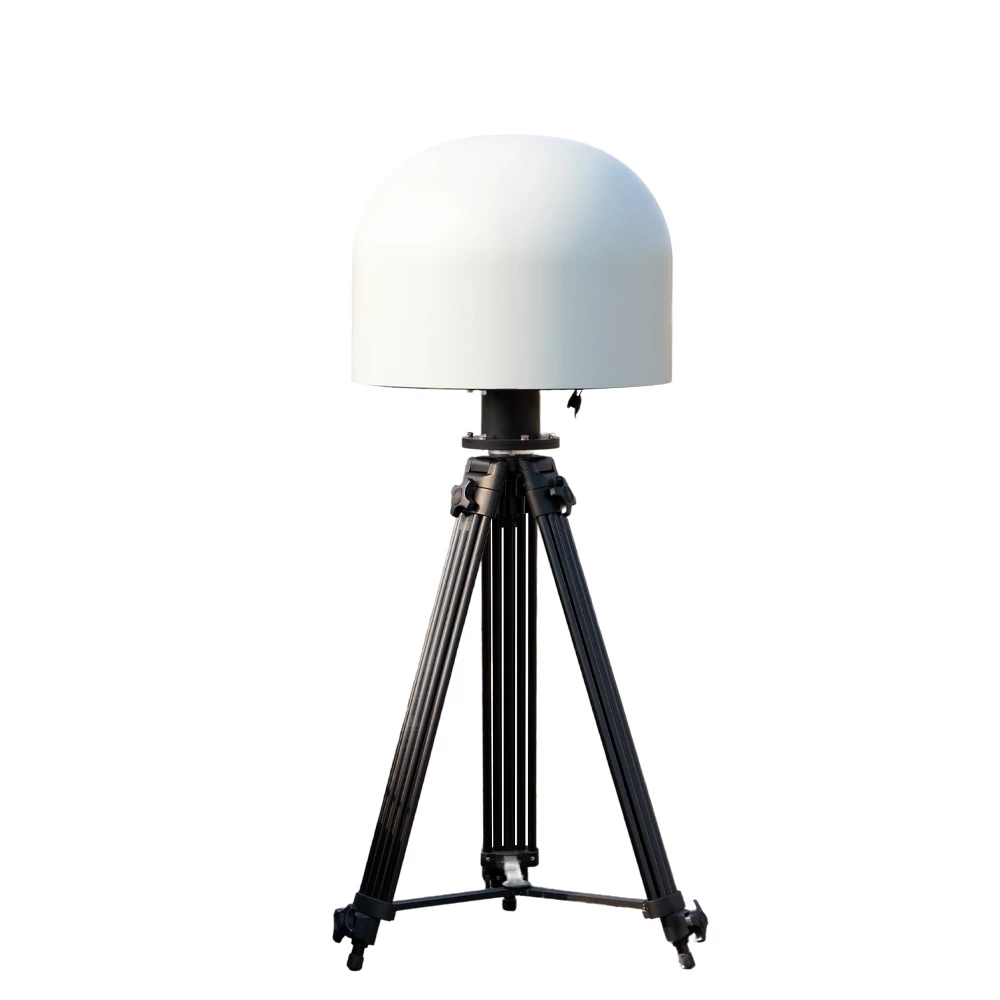

JH-CD800

Integrated Detection
& Signal Management
System

Fixed Low-Altitude Security Solution

The JH-CD800 is designed for fixed low-altitude security applications, integrating wideband detection, multi-band signal management, 360° coverage, and remote visualized control for critical site protection.

Frequency Range: 70MHz-6GHz
Independent Channels: Up to 56
360° Coverage
24/7
7x24 Operation
Key Bands Optimized
70MHz-6GHz Detection
500MHz-6.2GHz FPV Scan
Real-Time Video-Link View
360° Omnidirectional Detection
Direction Finding: ≤ ± 16°RMS
Precise Target Bearing
Continuous Monitoring
Multi-Band Coverage
Directional Suppression
Custom Frequency Options
Up to 56 Independent Channels
IP66
IP66 Protection
Operating Temperature: -40°C to +60°C
1+N Networking
Visualized Control System
Fixed Installation
24/7
24/7 Operation
Remote Management
Custom Configuration

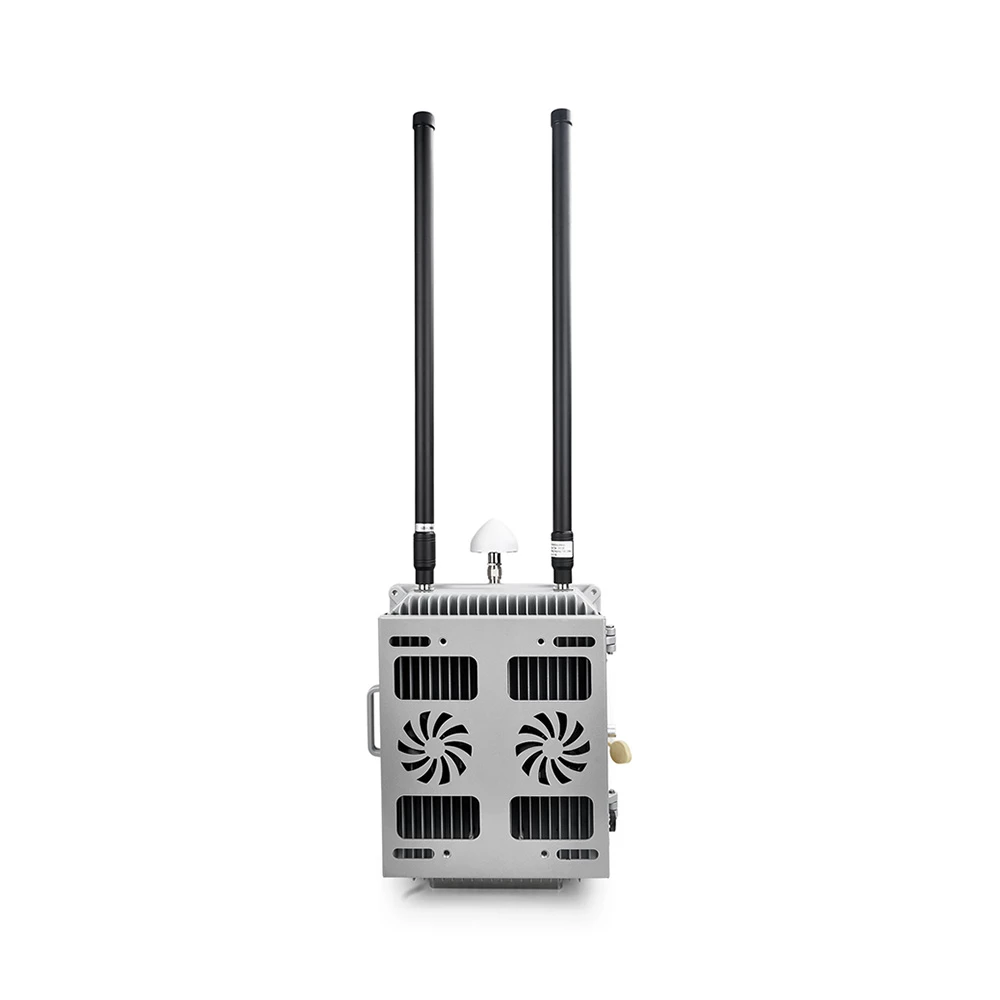

JH10D

Fixed UAV
Detection Device

Long-Range Passive Drone Detection for 24/7 Security Protection

Designed for fixed-site drone monitoring, the JH10D supports a wide detection frequency range of 100MHz–6000MHz and provides stable long-range drone detection for critical security areas. Its fixed-installation design, passive detection technology, and continuous 7×24-hour operation make it ideal for airports, government facilities, industrial zones, energy sites, and perimeter protection applications.

Detection Frequency: 100MHz–6000MHz
Detection Range: 8–10 km
360° Passive Detection
Fixed Installation
Supports 500+ Drone Models
24/7
7×24 Continuous Operation
Multi-Target Detection
IP65
IP65 Protection
High Anti-Interference Capability
Networked Deployment & API Integration
GPS SPOOFING

GPS Spoofing Device
for Drone Navigation
Deception

Precise Deception for Drone Navigation Protection

This device generates false GPS signals to mislead drone navigation systems, disrupting their positioning and flight control. It is widely used in security protection, no-fly zone defense, and critical area safeguarding.

Spoofing Frequency Bands: GPS L1 / L2 | GLONASS L1 | BeiDou B1 | Galileo E1
Spoofing Range: 500 m – 3 km (adjustable)
Output Power: 10W/20W/30/50W/80W
/100W/120W/150W (customizable)
Control Modes: Supports directional drone deterrence power output -70dBm~+20dBm
Power Adjustment: 1dB increments
<60s
Startup Time: <60 seconds (RMS)
<10s
Intrusion Time: <10 seconds
Communication Protocol: UDP protocol
<20km
Induction Range: <20 kilometers
Signal Modes: Position Hold | Position Offset | Return-to-Home | Landing Trap
Antenna: High-Gain Omnidirectional Antenna
Control Method: Local Web Interface / Remote Control
Power Supply: AC 220V
≤5kg
Weight: ≤10 kg
Operating Temperature: -20°C to +60°C

WHY CHOOSE US

01

Integrated Solutions

Complete detection, identification & countermeasure systems.

02

Multi-Technology Fusion

Radar, RF, EO/IR integration for comprehensive coverage.

03

Multi-System Integration

Seamless compatibility with command and control systems.

04

OEM/ODM Support

Custom solutions tailored to your mission.

05

Global Deployment

Worldwide support and rapid delivery capability.

06

Quality Assurance

Rigorous testing and proven reliability.

CUSTOM SOLUTION PROCESS

01

Requirement Discussion

Application · Frequency · Power · Quantity

02

Technical Solution

Customized Design & Configuration

03

Quotation & Sampling

Fast Costing & Prototype Build

04

Sample Approval

Testing & Performance Verification

05

Mass Production Order

Confirm Specs & Production Plan

06

Production & Delivery

Quality Control & On-Time Shipment
