Coverage Planning
Provide the protected boundary, installation height, terrain, buildings and expected approach directions for antenna placement review.
P2 Fixed RF Drone Detection System
Fixed RF Drone Detection with Direction Finding and Signal Analysis
The P2 Fixed RF Drone Detection System is designed for continuous low-altitude airspace monitoring and perimeter security. Covering 30MHz to 6000MHz, it supports spectrum analysis, drone signal identification, direction finding, positioning, and Remote ID decoding for fixed-site drone detection applications.
With high-speed scanning, multi-target monitoring, and support for OcuSync and FPV signal analysis, the P2 is suitable for airports, industrial parks, border areas, energy facilities, prisons, and other critical infrastructure sites. Its detection range reaches ≥5 km in typical deployment conditions.
Quote
Request pricing
Delivery
Global shipment
Customization
OEM / ODM support
Response
Technical consultation
Product Details
Specifications

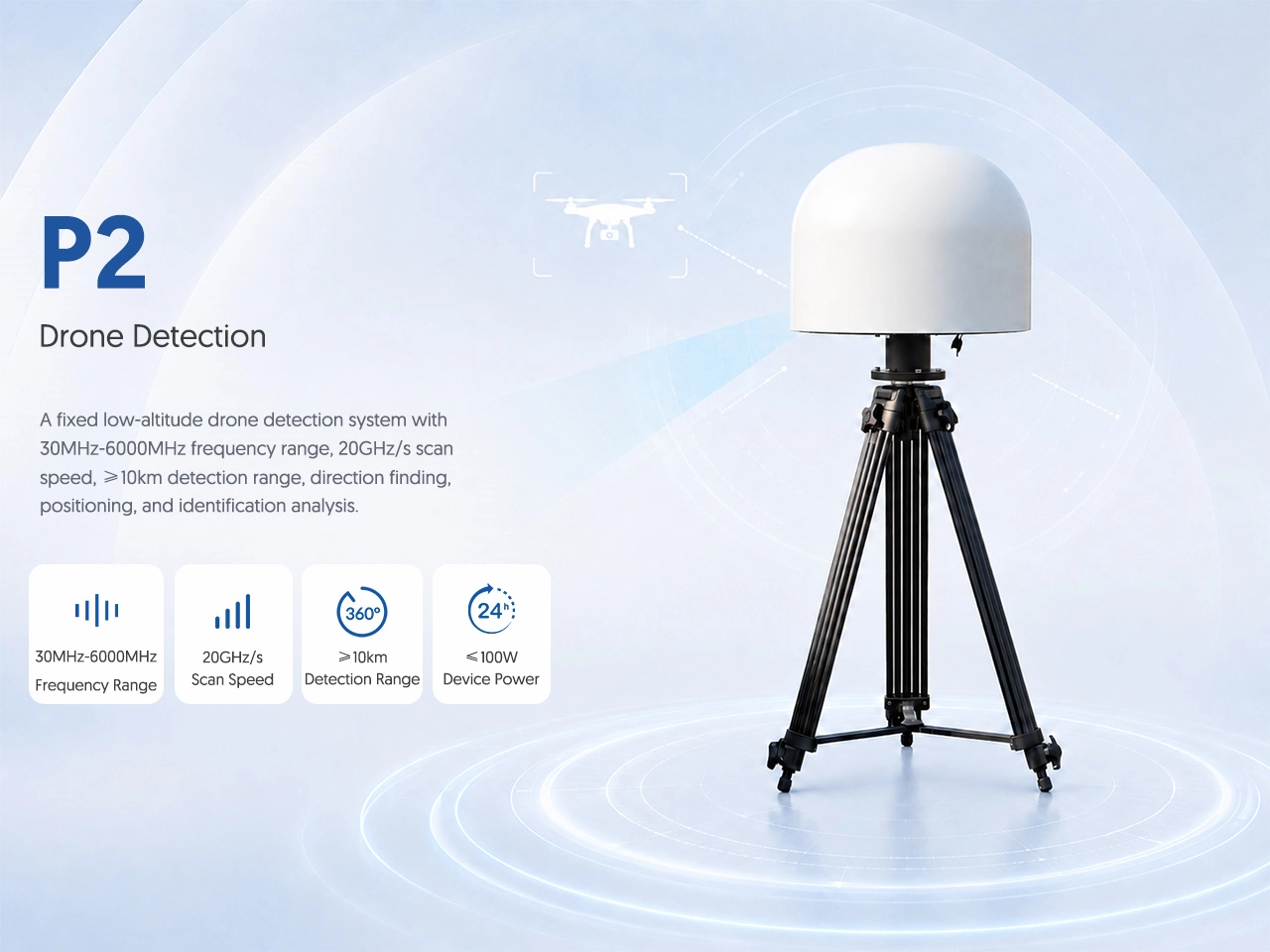

P2 Drone Detection
A fixed low-altitude drone detection system with 30MHz-6000MHz frequency range, 20GHz/s scan speed, ≥10km detection range, direction finding, positioning, and identification analysis.
30MHz–6000MHz Frequency Range
20GHz/s Scan Speed
≥10km Detection Range
≤100W Device Power

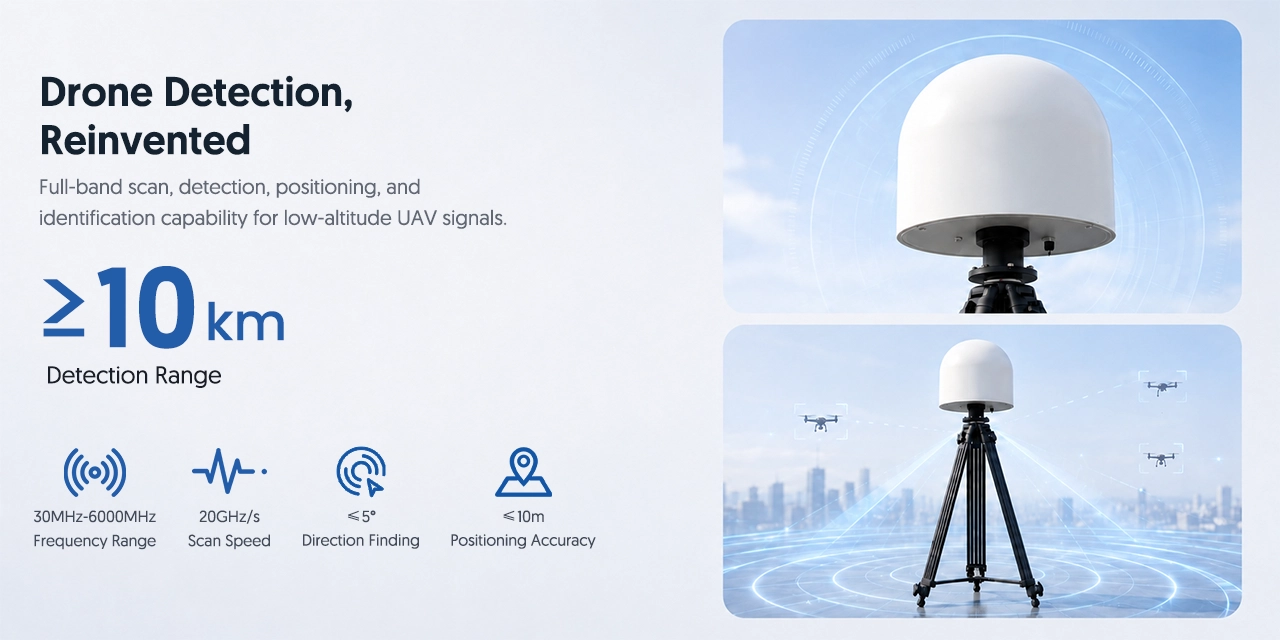

Drone Detection, Reinvented
Full-band scan, detection, positioning, and identification capability for low-altitude UAV signals.
≥10 km
30MHz–6000MHz Frequency Range
20GHz/s Scan Speed
≤5° Direction Finding
≤10m Positioning Accuracy
Fast, Accurate Drone Detection
Designed for full-band UAV signal detection, positioning, and reliable direction finding in complex electromagnetic environments.
≥10 km
30MHz–6000MHz Frequency Range
≤5° Direction Finding
≤10m Positioning Accuracy
20GHz/s Scan Speed

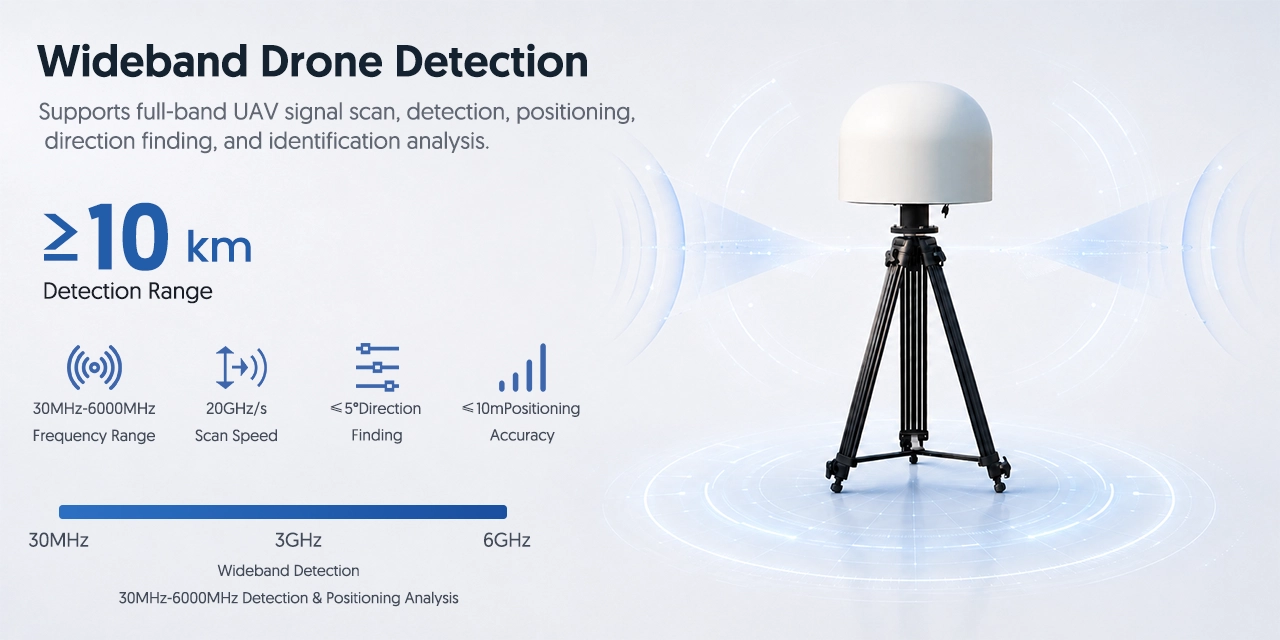

Wideband Drone Detection
Supports full-band UAV signal scan, detection, positioning, direction finding, and identification analysis.
≥10 km
30MHz–6000MHz Frequency Range
20GHz/s Scan Speed
≤5° Direction Finding
≤10m Positioning Accuracy

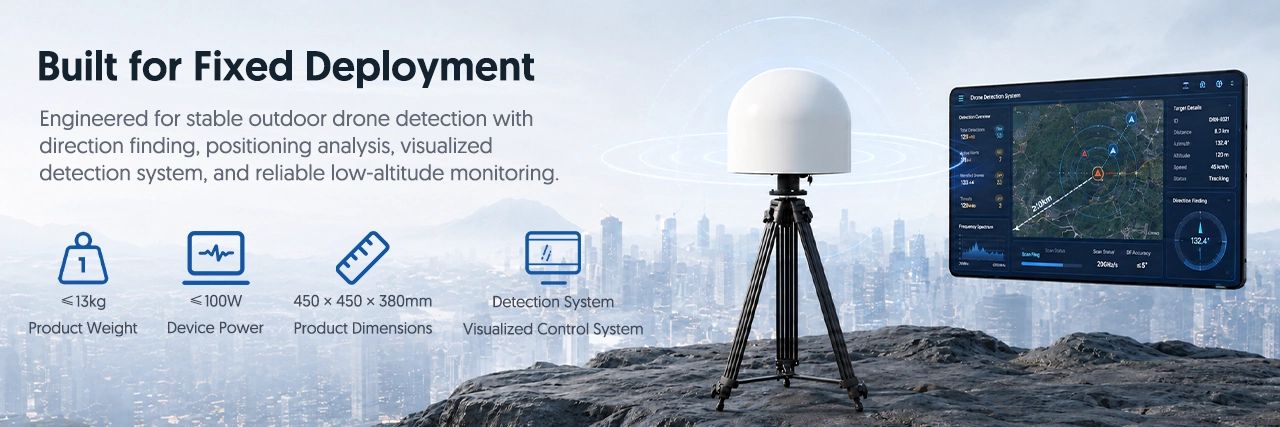

Built for Fixed Deployment
Engineered for stable outdoor drone detection with direction finding, positioning analysis, visualized detection system, and reliable low-altitude monitoring.
≤13kg Product Weight
≤100W Device Power
450 × 450 × 380mm Product Dimensions
Visualized Control System

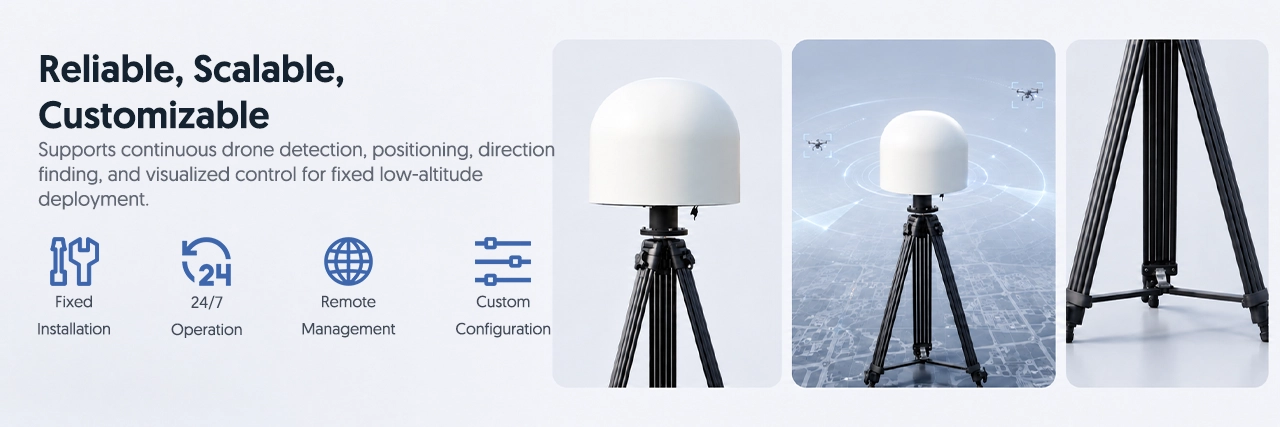

Reliable, Scalable, Customizable
Supports continuous drone detection, positioning, direction finding, and visualized control for fixed low-altitude deployment.
Fixed Installation
24/7 Operation
Remote Management
Custom Configuration
Ready for Critical Sites
Suitable for low-altitude security applications across key areas where wideband detection, long-range monitoring, direction finding, and positioning analysis are required.
Airport Perimeter
Industrial Parks
Energy Facilities
Border Areas
Fixed RF Drone Detection for Continuous Site Protection
The P2 Fixed RF Drone Detection System is designed for permanent low-altitude airspace monitoring and perimeter defense. Covering 30MHz to 6000MHz, it supports spectrum analysis, drone signal identification, direction finding, positioning, and Remote ID decoding.
P2 is suitable for security teams that need early warning and technical analysis of drone activity around sensitive sites. It can monitor multiple drone targets and support fixed-site deployments where continuous coverage is required.
30MHz–6000MHz
RF Monitoring
RF Monitoring
Direction Finding
and Positioning
and Positioning
Remote ID
Decoding
Decoding
Multi-Target
Monitoring
Monitoring
Recommended applications include airports, industrial parks, energy facilities, prisons, border areas, government compounds, and other critical infrastructure locations that require fixed drone detection and perimeter situational awareness.
| Product Name | P2 Drone Detection |
| FREQ RANGE | 30 MHz – 6000 MHz |
| SCAN SPEED | 20 GHz/s (25 kHz resolution) |
| POLARIZATION | Vertical |
| DETECTION RANGE | ≥5 km |
| IDENTIFICATION | Spectrum analysis (Incl. OcuSync) / RID decoding |
| DIR. ACCURACY | ≤5° (RMS) |
| POS. ACCURACY | ≤10 m |
| POWER | ≤100 W |
| CAPACITY | ≥30 drones (≥10 tracked simultaneously) |
| DIMENSIONS | 450 × 450 × 380 mm |
| WEIGHT | ≤13 kg |
Fixed RF Detection Project Guide
P2 Fixed RF Drone Detection System for Continuous Site Monitoring
P2 is a fixed RF drone detection system for persistent low-altitude monitoring. Its published configuration covers 30MHz–6000MHz and supports spectrum analysis, direction finding, positioning and Remote ID decoding for compatible signals and targets.
RF Environment
Nearby transmitters and local spectrum occupancy should be considered when setting thresholds and planning practical detection coverage.
Alarm & Data Integration
Define required operator displays, network interfaces, alarm outputs, APIs and connections to existing security platforms.
Verification Layer
For higher-confidence classification, consider EO/IR or radar support where RF-only sensing may have blind spots.
Technical & Procurement Questions
Frequently Asked Questions
What is the listed frequency range of the P2 detection system?
The published P2 specification lists 30MHz–6000MHz spectrum coverage. The relevant targets, supported protocols and site RF environment should still be confirmed during technical evaluation.
Does P2 support drone direction finding?
The product is configured for spectrum analysis and direction-finding functions. Final positioning architecture, antenna placement and performance depend on the selected configuration and site layout.
Can P2 detect drones that are not transmitting?
RF detection requires detectable signal activity. Radar and EO/IR can be added where autonomous, radio-silent or unsupported targets must also be considered.
What affects the stated detection range?
Target signal power, pilot location, antenna height, terrain, obstructions, RF noise, line of sight and target protocol all affect practical range. The listed figure should be validated against the project site.
What information is needed for a P2 system proposal?
Send a site map, protected area, installation points, target types, expected coverage, networking and integration needs, quantity, destination country and project schedule.
Plan a P2 Fixed Detection Deployment
Share a site plan, target types, coverage and integration requirements for a project-based proposal.
