Signal Specification
Provide input power, waveform, modulation, duty cycle, peak-to-average ratio, gain and linearity requirements.

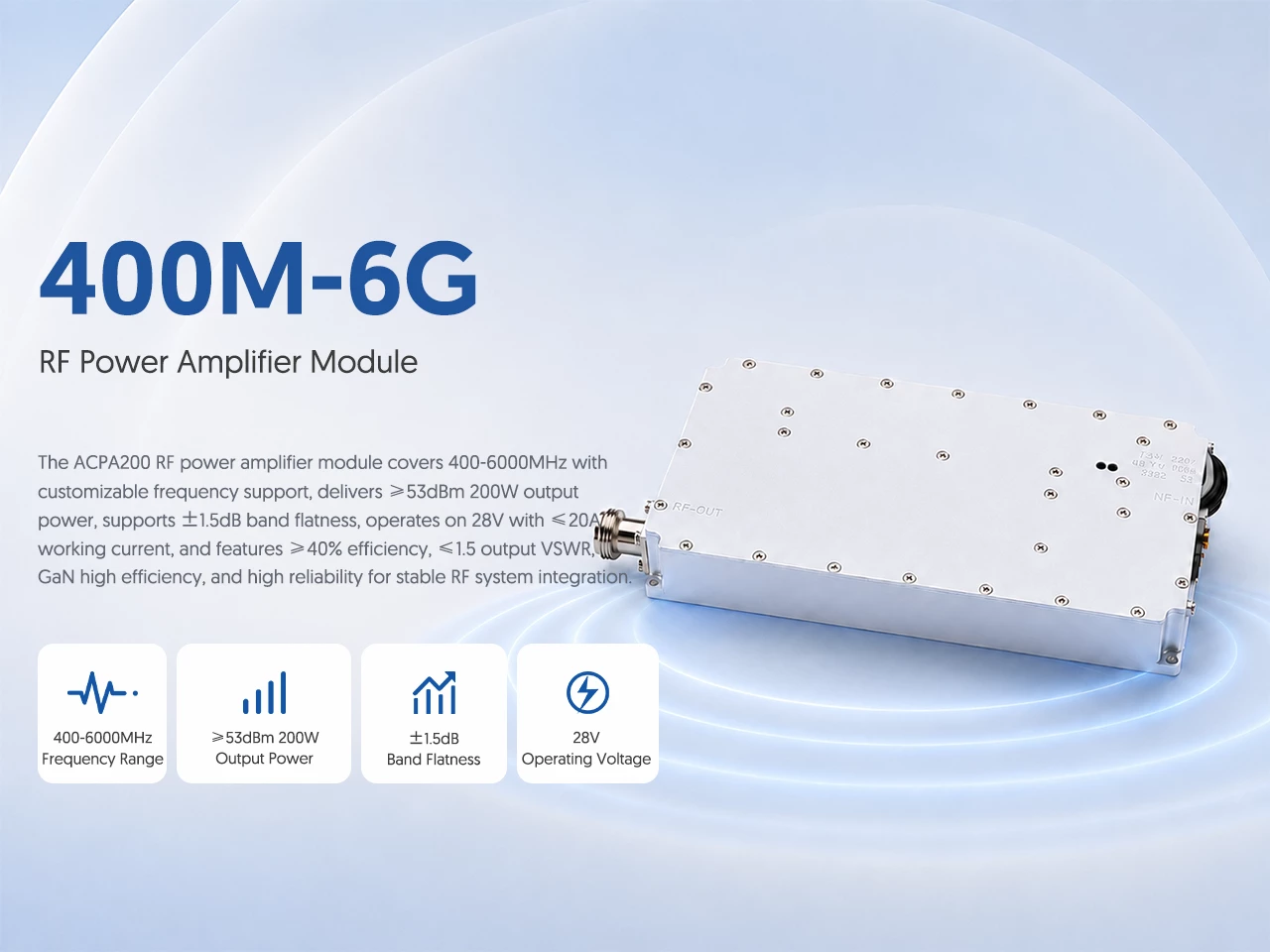

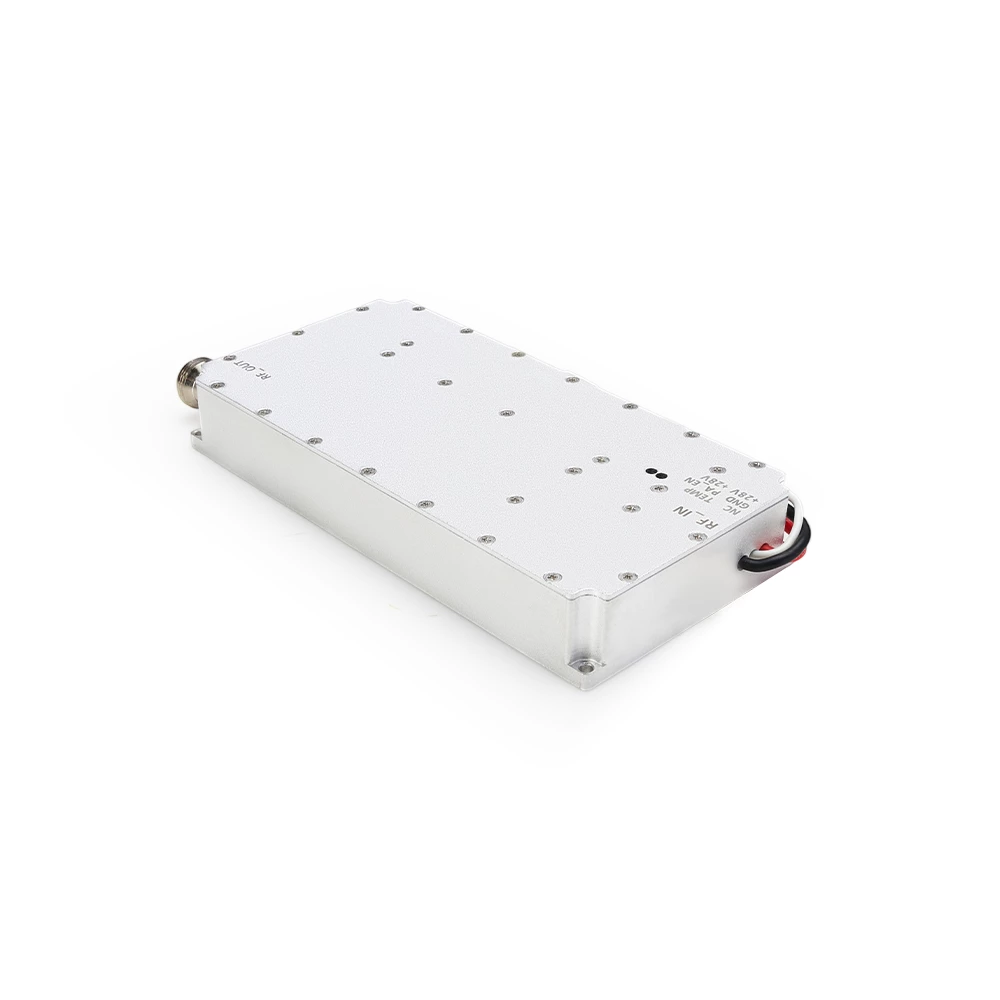

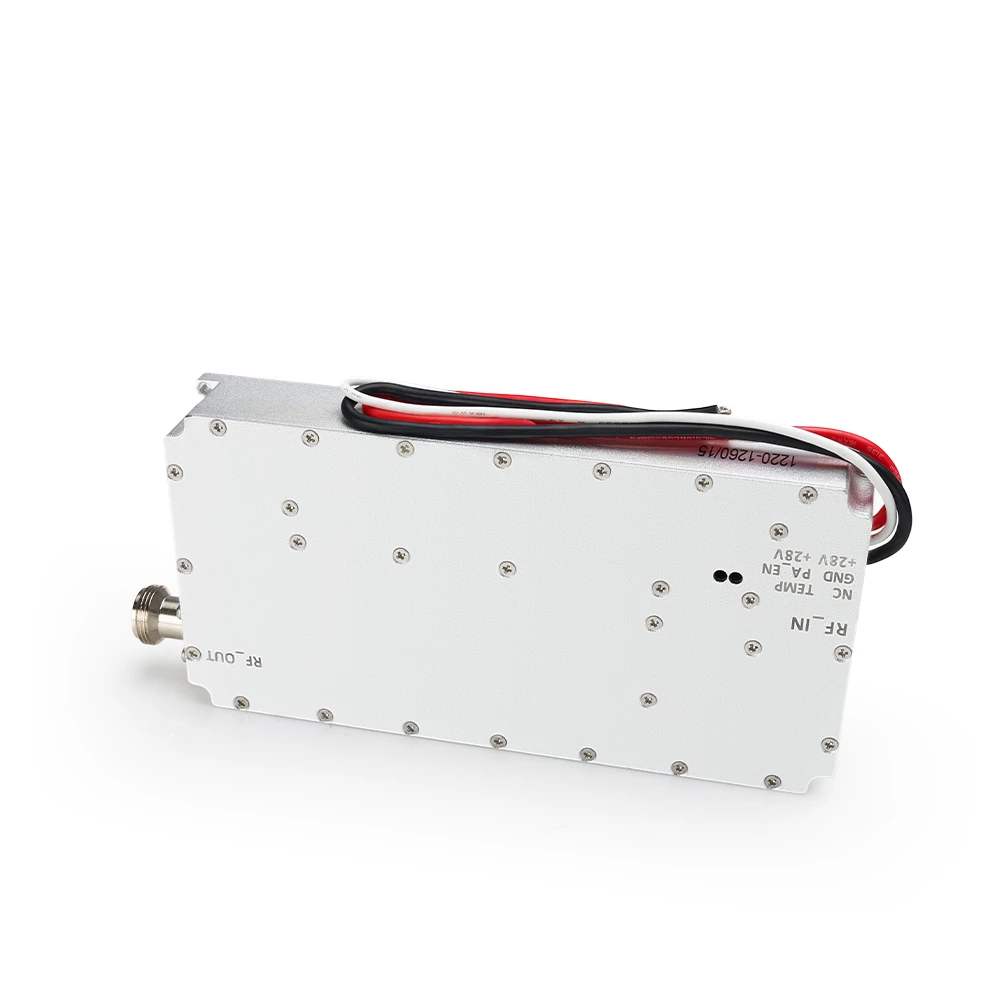

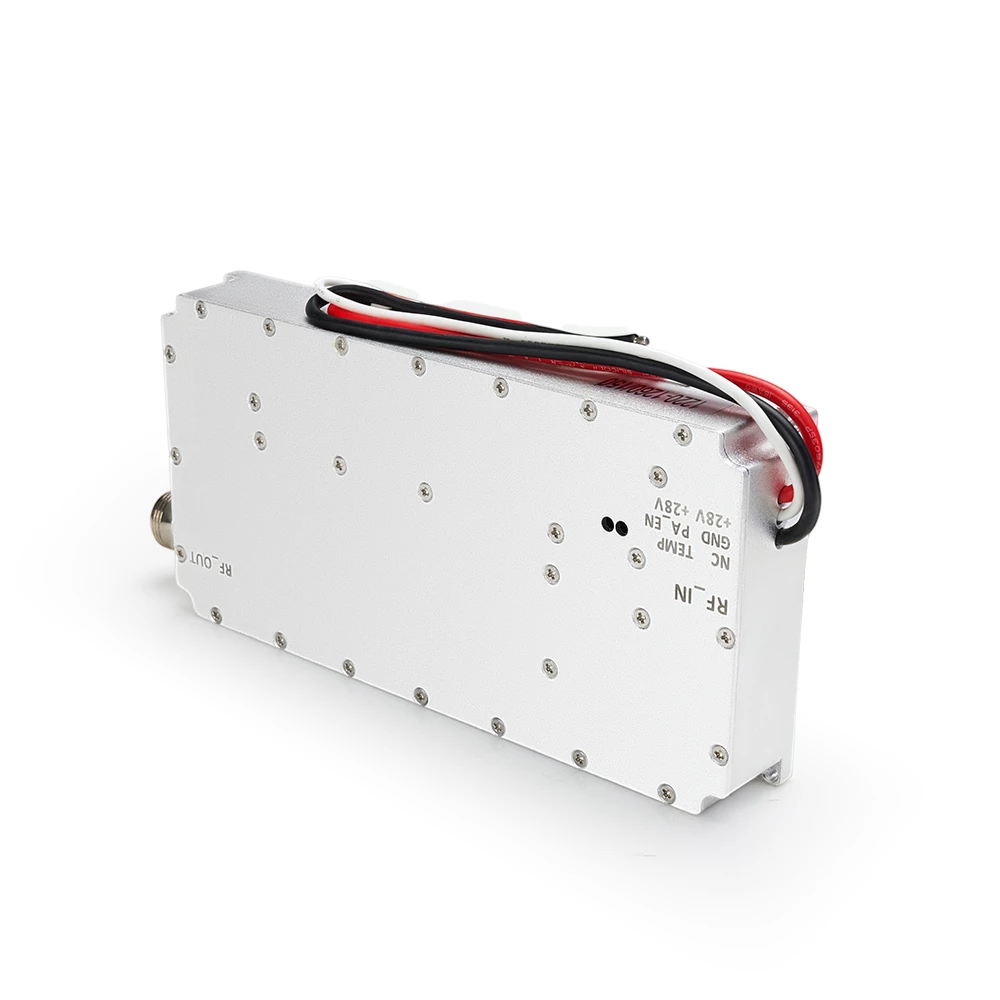

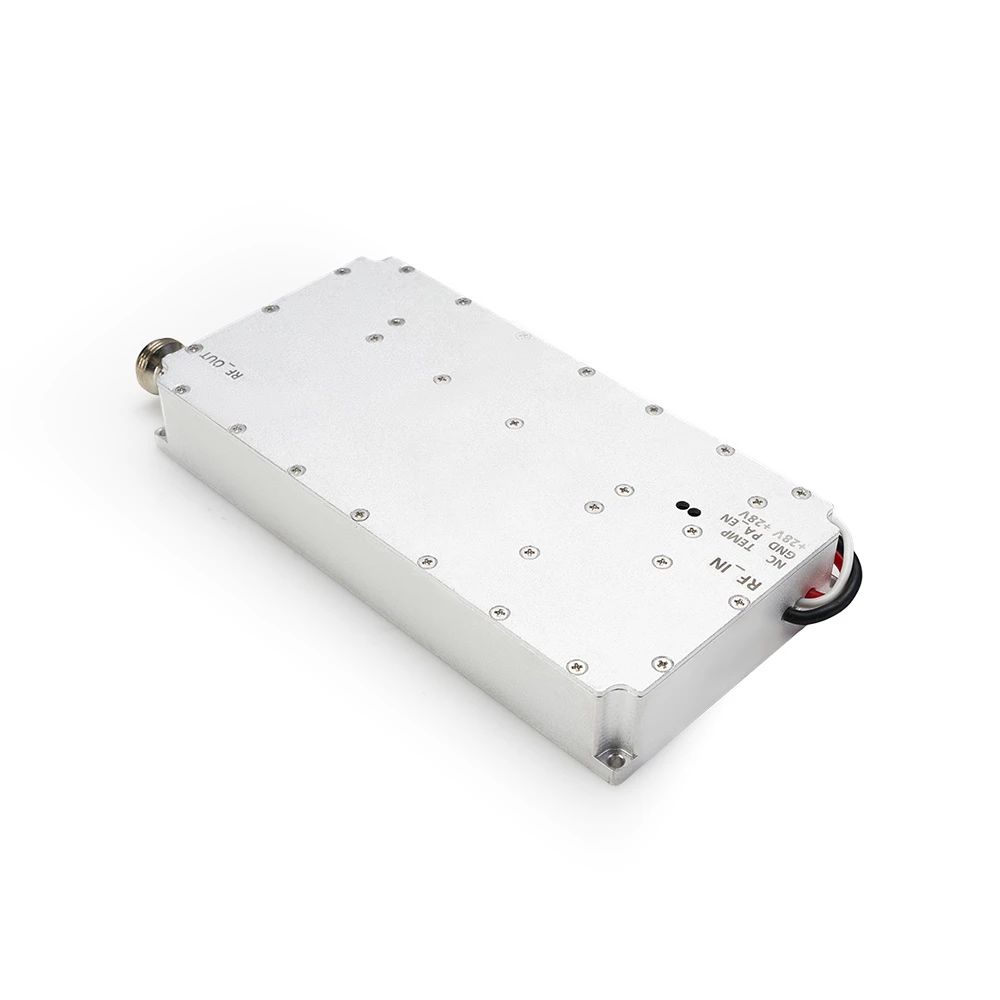

400–6000MHz 200W RF Power Amplifier Module
Wideband Class AB GaN RF Amplifier for High-Power System Integration
This 400MHz–6GHz 200W RF power amplifier is engineered for high-power OEM system integration. The 400–6000MHz 200W RF Power Amplifier Module is a high-efficiency wideband GaN amplifier for demanding RF system integration. It supports 400–6000MHz instantaneous coverage, ≥200W output power, ±1.5dB gain flatness, 28V operating voltage, 50Ω RF design, and CW signal input. With Class AB GaN architecture, stable RF output, low distortion performance, and industrial-grade reliability, this module is suitable for anti-drone RF modules, signal jamming systems, RF testing, EMC applications, broadband signal amplification, and customized RF equipment integration.
Quote
Request pricing
Delivery
Global shipment
Customization
OEM / ODM support
Response
Technical consultation
Product Details
Specifications

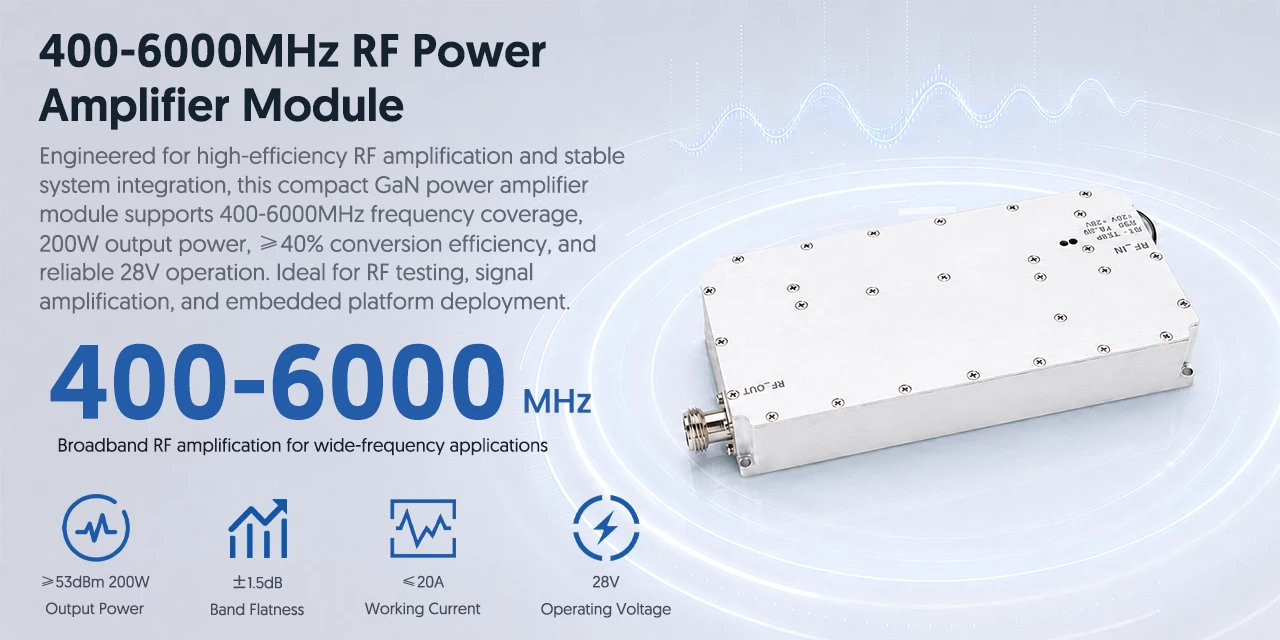

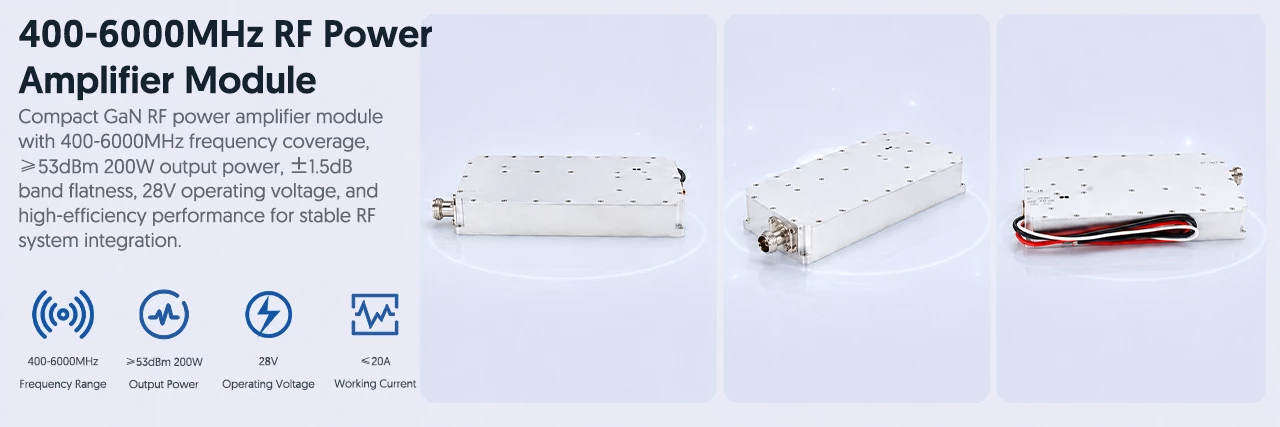

400–6000MHz RF Power Amplifier Module
High-efficiency GaN RF power amplifier module supporting 400–6000MHz wideband operation. Designed for stable RF system integration with high output power and low distortion performance.
≥200W Output Power
±1.5dB Gain Flatness
28V Operating Voltage
High Efficiency GaN
Wideband RF Power Amplifier Series
Class AB GaN design with broadband instantaneous coverage, optimized for stable RF transmission and system integration.
400–6000MHz Coverage
Stable Output
50Ω RF Design
Industrial Grade Reliability
High Efficiency RF Amplification
Designed for stable high-power RF amplification, supporting CW signal input and continuous operation scenarios.
≥53dBm Output
≤20A Working Current
28V Supply
Stable Operation

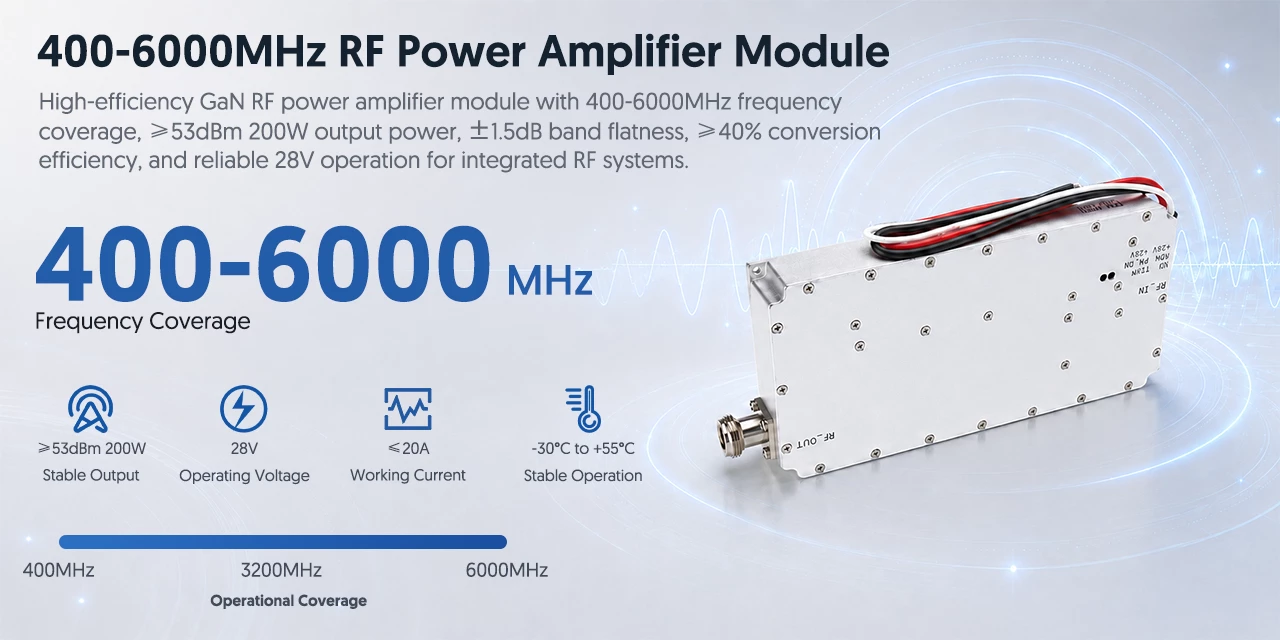

Frequency Sweep Capability
Full band 400MHz–6000MHz continuous sweep capability, suitable for multi-band RF testing and deployment systems.
400–6000MHz Sweep
Wideband Coverage
Stable RF Output
Low Distortion
Compact GaN Power Module
Compact RF power amplifier module designed for embedded RF systems, high integration and efficient thermal management.
Stable Industrial Operation
Built for long-term stable operation in harsh environments, supporting -30°C to +55°C working temperature range.
-30°C ~ +55°C
High Reliability
Continuous Operation
Industrial Grade
Ready for Critical Applications
Suitable for aviation, industrial, energy, and border security RF deployment scenarios, providing stable high-power RF coverage.
Airport Security
Industrial Parks
Energy Facilities
Border Protection

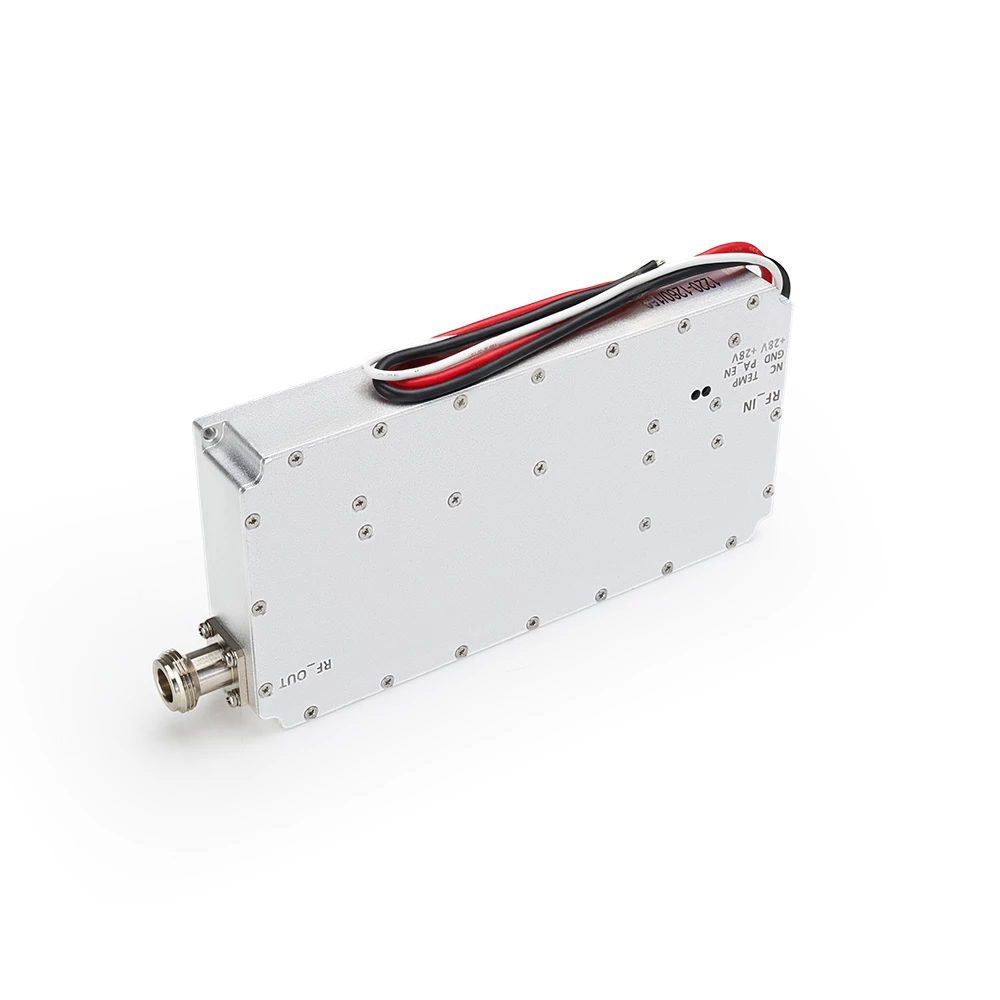

400–6000MHz 200W RF Power Amplifier Module
This wideband RF power amplifier module is designed for B2B projects that require stable high-power amplification across 400–6000MHz.
Its Class AB GaN design, ≥200W output power, ±1.5dB gain flatness, 50Ω RF architecture, and CW input support make it practical for demanding RF system integration.
400–6000MHz Wideband
≥200W Output Power
±1.5dB Gain Flatness
28V Operation
Recommended applications include anti-drone RF modules, signal jamming systems, RF test platforms, EMC testing, broadband signal amplification, and customized RF equipment.

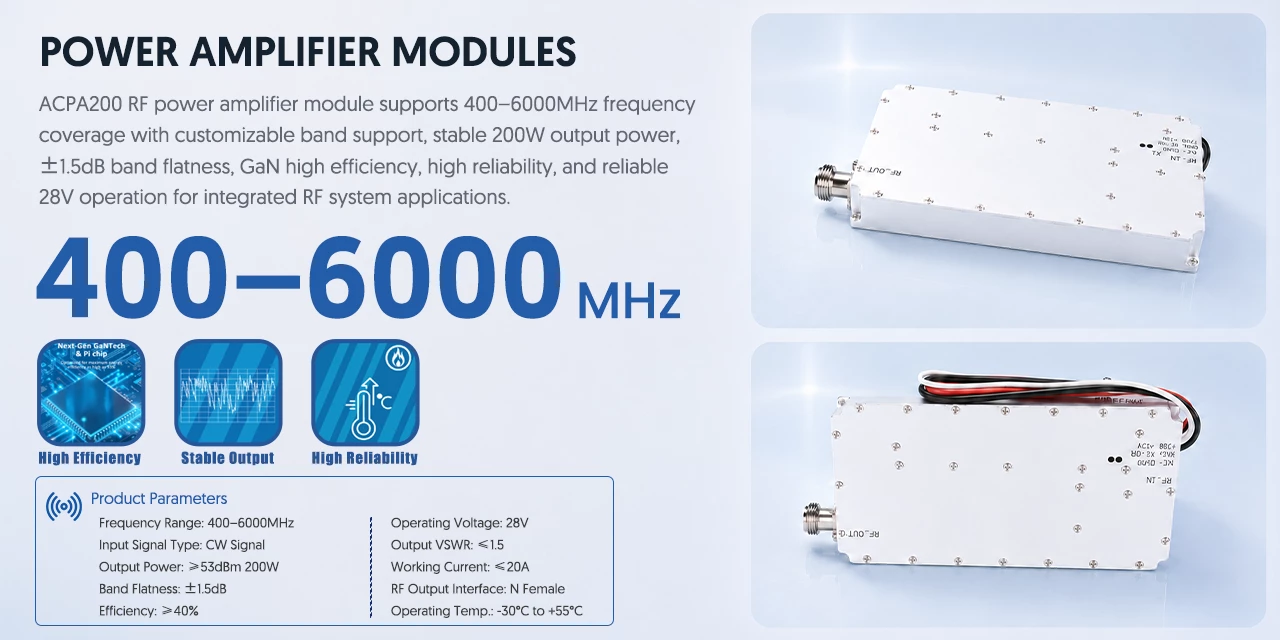

| Product Name | 400–6000MHz 200W RF Power Amplifier Module |
| Frequency Range | 400–6000MHz |
| Output Power | ≥200W |
| Gain Flatness | ±1.5dB |
| Technology | Class AB GaN RF power amplifier |
| Operating Voltage | 28V |
| RF Impedance | 50Ω |
| Input Signal | CW signal input |
| Applications | Anti-drone modules, jamming systems, RF testing, EMC, broadband signal amplification |
Wideband RF PA Integration Guide
400–6000MHz 200W RF Power Amplifier Module for OEM Integration
This wideband Class AB GaN RF power amplifier module is specified for 400–6000MHz instantaneous coverage and at least 200W output in a suitable system configuration. It is intended for professional RF integration where the complete signal chain, power and thermal design can be engineered together.
Power Supply
The listed operating voltage is 28V; current capacity, filtering, protection and cabling must suit the target RF output.
Thermal Interface
Heat-sink flatness, airflow, ambient temperature, duty cycle and enclosure design directly affect reliable operation.
RF Chain Integration
Confirm filters, isolators, couplers, connectors, load VSWR protection, monitoring and antenna compatibility.
Technical & Procurement Questions
Frequently Asked Questions
Is the 400–6000MHz bandwidth instantaneous?
The published product specification describes 400–6000MHz instantaneous coverage. Confirm the required waveform, output, flatness and test conditions with the technical team before system design.
What output power is specified for this RF PA module?
The listed output is at least 200W under the specified integration and test conditions. Practical performance depends on drive level, waveform, duty cycle, cooling, supply and load conditions.
What cooling is required?
The module requires a system-level thermal design based on efficiency, duty cycle, ambient temperature and enclosure. Provide heat-sink, airflow and operating-cycle details for review.
Can connectors, controls or dimensions be customized?
Project-based electrical and mechanical customization may be evaluated for suitable OEM quantities. Provide drawings, interface definitions, monitoring and protection requirements.
What should be included in an RF amplifier inquiry?
Send frequency, bandwidth, output, input level, waveform, duty cycle, supply, cooling, connectors, dimensions, control interface, environmental conditions, quantity and application.
Send Your 200W RF Amplifier Requirements
Include waveform, duty cycle, drive, supply, cooling, interface and quantity for a technical quotation.
