In recent years, the rapid development of drone technology has not only driven innovation across industries such as aerial photography, logistics, agriculture, and security, but also brought serious challenges to airspace safety. Illegal drone incursions, privacy violations, and potential security threats are becoming more frequent, severely impacting public safety. For instance, in 2024, an international airport experienced a drone intrusion into a no-fly zone, causing flight delays and economic losses amounting to millions of dollars. This event highlights the urgent need for counter-drone technology.
As the threat of drones increases, Counter-Unmanned Aerial System (C-UAS) technology has emerged. Through methods such as detection, jamming, capture, and command and control, C-UAS technology forms a complete defense chain designed to effectively address the threat of illegal drones. This article will explore the core technologies, practical application scenarios, future trends, and challenges of counter-drone technology.
I. Core Technologies and Equipment of Counter-Drone Systems

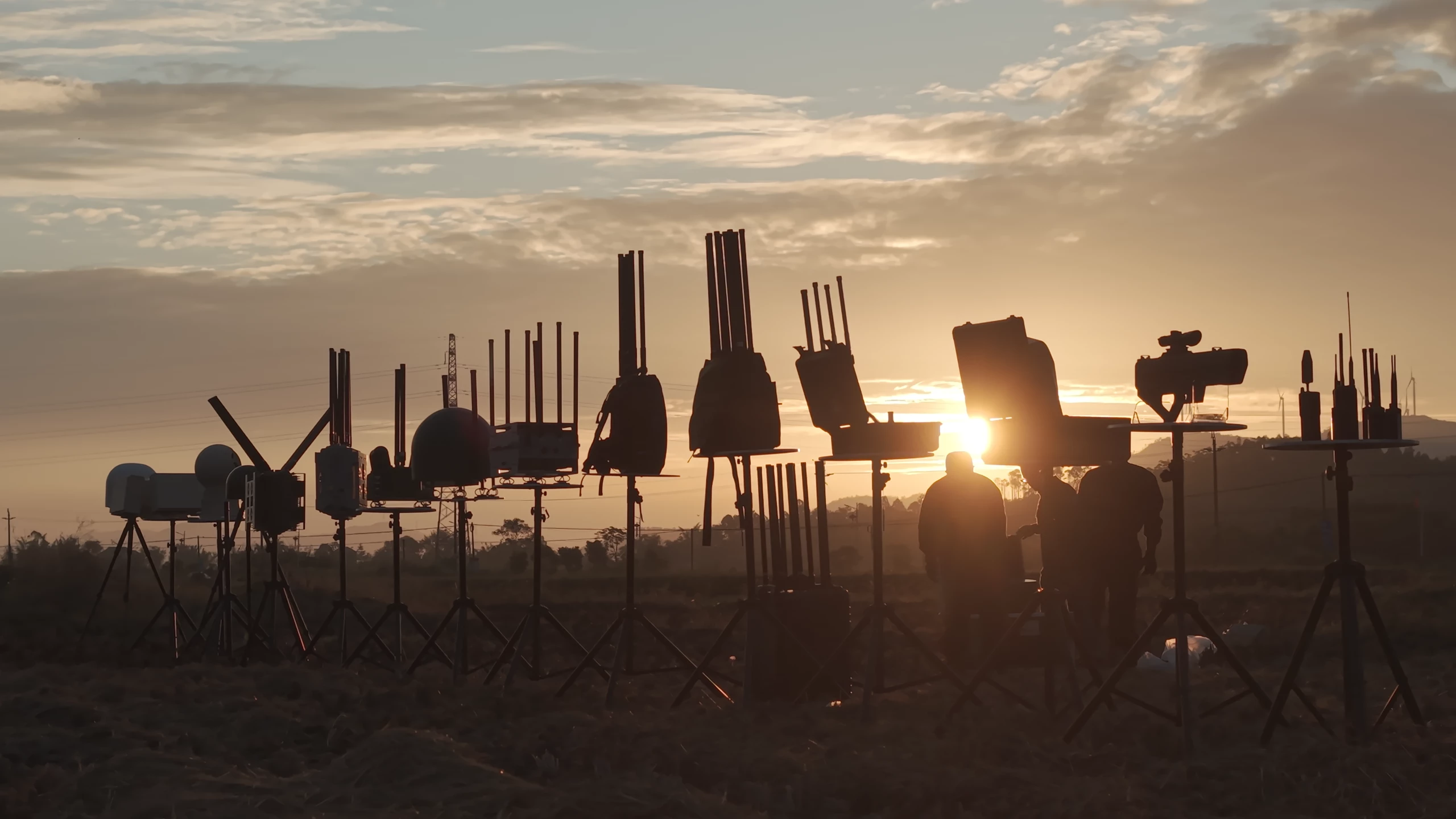

Counter-drone technology involves several technical modules, including detection, jamming, capture, and command and control, forming a multi-layered defense system. These systems work in coordination to counter various drone threats.
Detection Systems:The "Sentinel" of Drones
The detection system is the first step in countering drones, responsible for identifying and locating drones in flight. Common equipment includes:
-
Radio Frequency (RF) Detectors: These detect communication signals from drones (such as 2.4GHz, 5.8GHz Wi-Fi, or proprietary protocols), identifying the drone's model and location, with a detection range of up to 8 kilometers. For example, some RF detectors can decode the DJI OcuSync protocol, with positioning accuracy of up to 10 meters.
-
Radar Systems: Using millimeter-wave or microwave radar, these systems monitor the flight trajectory of drones, suitable for low-altitude and complex terrain monitoring, with a range of up to 15 kilometers and positioning accuracy of 0.5 meters.
-
Optical/Infrared Sensors: Combined with 4K cameras and infrared thermal imaging, these sensors are ideal for night-time or foggy conditions, with a detection range of 2-5 kilometers, capturing visual and thermal characteristics of drones.
-
Acoustic Detectors: These use microphone arrays to capture the acoustic features of drone propellers, effective in urban environments with a detection range of up to 1,000 meters.
These detection systems employ multi-sensor fusion, improving accuracy and supporting 360° coverage.
Jamming Systems: The “Barrier” to Drone Signals
Jamming systems interfere with the drone’s communication and navigation by emitting electromagnetic signals. Key equipment includes:
-
RF Jammer: These transmit white noise or swept-frequency signals, suppressing the 2.4GHz and 5.8GHz bands, with power ranging from 10W to 500W, covering from 500 meters to 10 kilometers. For example, a 100W jammer can force a drone to land within 5 kilometers.
-
GPS Jammer: These target the 1.5GHz GPS L1 band, emitting noise or spoof signals to disrupt positioning, with coverage from 1 to 5 kilometers.
-
Portable Jamming Guns: These handheld devices range from 10W to 50W in power, covering 500 to 2,000 meters. They are equipped with directional antennas and laser pointers for rapid response.
These jamming devices typically use Software-Defined Radio (SDR) technology to adjust signal parameters in real-time, allowing for multi-band and multi-protocol jamming.
Capture Systems: The “Executor” to Physically Remove Drones
Capture systems physically remove drones to eliminate threats. Common equipment includes:
-
Net Guns: These fire high-strength nets to entangle drone propellers, with a capture range of 50-200 meters, suitable for non-lethal close-range missions.
-
Intercepting Drones: Special drones equipped with nets or mechanical claws to chase and capture targets, with a range of 100-500 meters, suitable for mid-range tasks.
-
Laser Weapons: These high-energy lasers (1kW-50kW) burn the electronic components or structure of drones, with an effective range of 1-3 kilometers, ideal for high-threat scenarios.
-
High-Energy Microwave (HPM) Devices: These emit wideband electromagnetic pulses to incapacitate a drone’s electronics, with a coverage range of several hundred meters, effective against group targets.
Command and Control Systems: The “Brain” Coordinating Operations

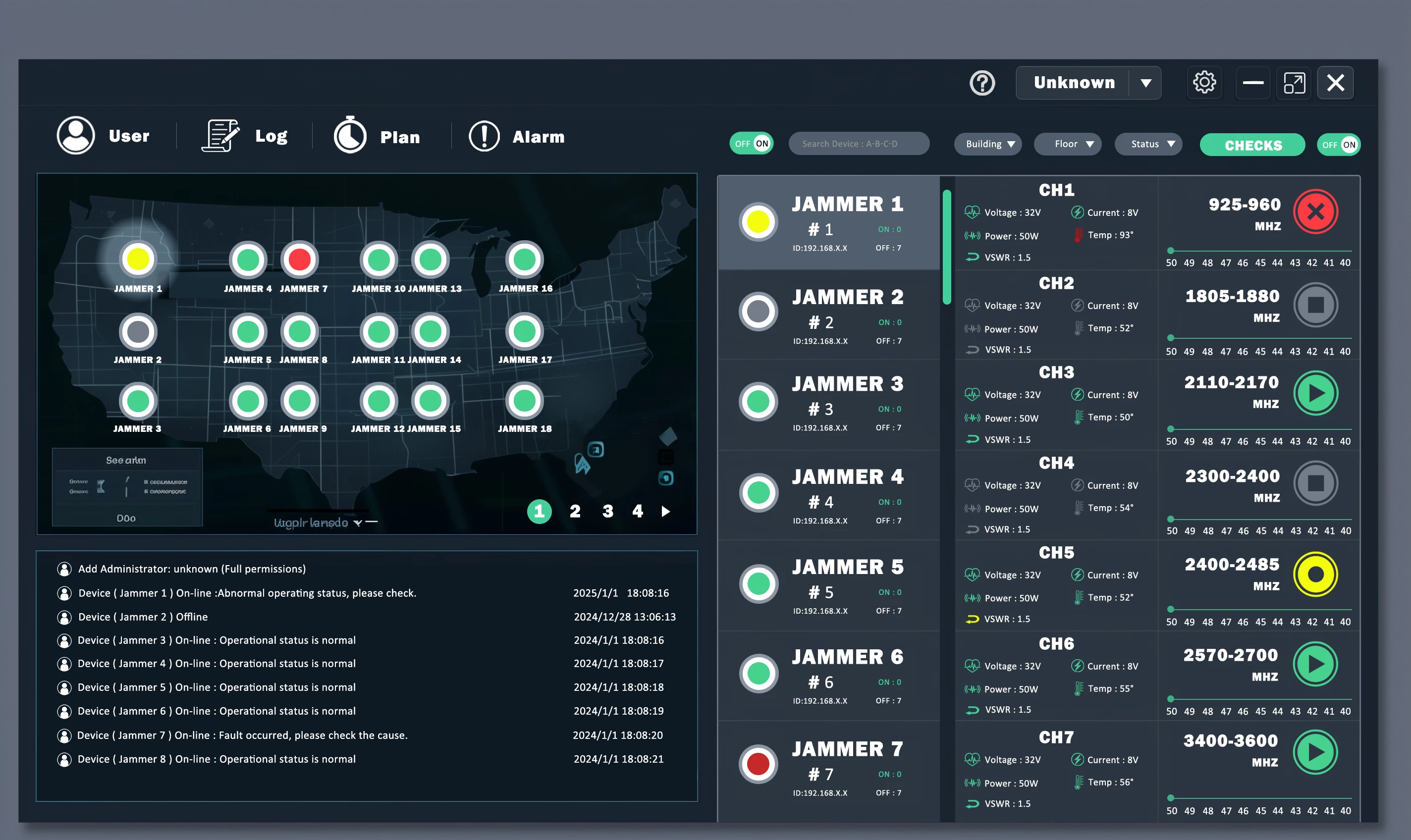

The command and control system integrates the data from detection, jamming, and capture devices, coordinating counter-drone operations. The system runs on high-performance computers and features multi-display interfaces that show drone positions, trajectories, and threat levels. Key technologies include:
-
Data Fusion: Algorithms like Kalman filtering combine multi-source data to create accurate 3D target information, with positioning errors less than 1 meter.
-
AI Decision Making: Deep learning models (such as YOLOv5) identify drone types, with a false positive rate below 3%.
-
Communication Interfaces: Through 5G or satellite links (AES-256 encryption), data is shared, enabling multi-device collaboration.
The system supports both automatic and manual modes. The automatic mode triggers countermeasures based on preset rules, while the manual mode allows operators to adjust strategies.
II. Counter-Drone Methods and Mechanisms
The core methods of countering drones include detection and tracking, signal jamming, physical capture, and collaborative command, forming a multi-layered defense mechanism.
Detection and Tracking: Accurately Locating the Threat
Detection and tracking rely on multi-sensor fusion to generate accurate position, speed, and model information. RF detectors capture communication signals and parse protocols and frequencies, while radar provides 3D tracking for low-altitude targets. Optical/infrared sensors provide visual and thermal characteristics, and acoustic detectors supplement close-range detection. Data fusion algorithms (e.g., Extended Kalman Filtering) combine data sources, generating unified situational awareness. For instance, a system can fuse radar and RF data in 3 seconds, locating a drone with an accuracy of 0.5 meters. The system supports real-time tracking, updating at 1Hz to handle fast-moving targets.
Signal Jamming: Cutting Off the Control Link
Signal jamming works by emitting high-power electromagnetic or spoof signals to disrupt the drone’s communication and navigation functions. Methods include:
-
Communication Jamming: White noise or swept-frequency signals are transmitted over the 2.4GHz and 5.8GHz bands, reducing the signal-to-noise ratio to -15dB and cutting off remote control and video transmission.
-
Navigation Jamming: Spoof or noise signals targeting the 1.5GHz GPS L1 band misguide drones to false coordinates or force them to land.
-
Dynamic Adjustment: Spectrum analyzers monitor the drone’s frequency in real time, allowing the system to adjust jamming parameters within 50 milliseconds to cope with frequency hopping or encrypted protocols.
These jamming mechanisms support multi-band collaboration, allowing for the simultaneous suppression of multiple frequency bands, increasing efficiency.
Physical Capture: Removing or Destroying Drones
Physical capture ensures that drones no longer pose a threat after jamming. Methods include:
-
Net Capture: A net gun or intercepting drone fires nets that entangle propellers, capturing drones at distances ranging from 50 to 500 meters.
-
Laser Strike: High-energy lasers destroy drone electronics or components, with an effective range of 1-3 kilometers and precision of 0.1 meters, ideal for high-threat targets.
-
High-Energy Microwaves: Electromagnetic pulses incapacitate drone electronics, with coverage extending to several hundred meters, suited for group targets.
The capture mechanism works in tandem with jamming, first suppressing signals before initiating capture, achieving a success rate of 95%.
Collaborative Command: Efficient Multi-Device Coordination
The command and control system integrates data from multiple sources, coordinating the tasks of detection, jamming, and capture. AI algorithms optimize task allocation, prioritizing high-threat targets. The system generates situational maps that show drone and operator positions, supporting real-time decision-making. For instance, a system can sync drone positions to the command center within 1 second, coordinating jamming guns and laser weapons to counter drones 5 kilometers away. The system also supports Network-Centric Warfare (NCW) architecture, enabling collaboration with ground forces or other drones.
III. Practical Application Scenarios
Counter-drone technology is widely applied in various scenarios, ensuring public safety, protecting critical infrastructure, and managing border security.
Airport Security: Protecting Airspace Safety
Airports are high-risk areas for drone threats, as illegal drones can interfere with aviation safety. Through the deployment of radar and optical sensors, counter-drone systems can cover a range of 5-10 kilometers, quickly locate and jam drones.
Critical Infrastructure Protection: Safeguarding Sensitive Areas
Nuclear power plants, military bases, and government facilities need counter-drone technologies to prevent reconnaissance or attacks. Fixed systems equipped with high-power jammers and laser weapons can effectively stop illegal drones from intruding.
Public Safety: Ensuring Large Event Security
During sports events, concerts, or major conferences, illegal drones can pose security or privacy risks. Portable jamming guns and fixed systems ensure that drone threats are suppressed quickly, safeguarding the event.
Border Management: Addressing Cross-Border Threats
Border areas are often faced with drone smuggling or illegal surveillance. Vehicle-mounted systems with radar, jammers, and intercepting drones can efficiently respond to cross-border drone threats and ensure border security.
IV. Challenges and Future Development
Despite the impressive performance of counter-drone technologies, challenges remain in terms of technology, legality, and sustainability. Future development trends focus on intelligent systems, integration, and multifunctionality.
Technological Challenges: Confronting Complex Environments and Anti-Jamming Technologies
In urban environments, signals may be affected by building reflections or electromagnetic interference, reducing detection and jamming performance. High-end drones may use frequency hopping or encrypted communications, requiring higher power or more precise jamming. Future systems will need to integrate AI-driven spectrum analysis to track frequencies in real-time. Issues with heat dissipation and energy consumption may be addressed with new materials (e.g., graphene) or more efficient batteries, extending battery life to 48 hours.
Legal and Ethical Issues: Balancing Regulation and Use
High-power jamming or laser weapons can impact civilian communications and raise security concerns. For example, in 2024, a city experienced public dissatisfaction when a jammer accidentally interfered with Wi-Fi networks. In China, counter-drone systems require approval from public security or civil aviation departments and are limited to specific areas. Future systems will need to develop precise jamming techniques, such as narrowband spoof signals, to minimize false interference. International regulations will govern the use of hard-kill technologies, balancing security with humanitarian principles.
Future Outlook: Intelligent and Integrated Systems
Counter-drone systems will optimize their performance through AI technology, such as using deep learning to identify drone types, reducing false positives to 1%. 6G networks will reduce data latency to 1 millisecond, enabling large-scale deployments. Systems will be deeply integrated with laser, microwave, and net-capture technologies, forming a multi-layered defense network. For example, a prototype system that combines radar and laser technology can achieve long-range detection and precise strikes. Future systems may also interface with Unmanned Traffic Management (UTM) systems to differentiate between legal and illegal drones.
Sustainability and Multifunctionality
Future systems will use solar or hydrogen fuel cells to extend operational time to 48 hours. Modular designs will support quick upgrades and accommodate new frequency bands (such as 6GHz Wi-Fi). These systems may be expanded beyond security to applications such as environmental monitoring or disaster relief, collecting data via onboard sensors. With the global trend in mind, devices will need to adapt to different countries’ frequency bands and regulations, such as 433MHz in Europe or 915MHz in the U.S., increasing competitiveness in international markets.
Conclusion
Counter-drone technology, through the integration of detection, jamming, capture, and command control systems, has formed an efficient and closed-loop defense system. Its successful applications in airport security, critical infrastructure protection, and border management demonstrate its multi-layered defense capabilities and flexibility. Despite challenges from complex environments and legal regulations, counter-drone technology continues to evolve through advancements in intelligence, integration, and multifunctionality, improving performance and applicability. As AI, 6G, and new materials converge, counter-drone technologies will play a more significant role in global security, providing robust support for building a secure and intelligent airspace environment.
