Introduction
As drones proliferate across commercial and public-safety missions, Counter-UAS (C-UAS) has become a critical layer to protect national security, public events, and critical infrastructure. The capability is shifting from stand-alone gear to system-of-systems, combining sensing, identification, tracking, and defeat under complex RF and urban conditions.
What Is C-UAS?
Counter-UAS is an integrated capability to detect, identify, track, and neutralize unauthorized or threatening drones. By degrading command-and-control links, disrupting navigation, or imposing physical effects, C-UAS systems can deter, divert, force-land, or defeat targets—while preserving evidentiary data for accountability.
Layered Defense & Typical Performance Envelope
Modern C-UAS architectures adopt layered defense—outer-ring early warning, mid-range classification, and inner-layer defeat—aiming for near-360° coverage and resilient operation across weather and spectrum conditions. Typical detection ranges reach multiple kilometers (e.g., >3.5 km), subject to target size, terrain, atmosphere, and RF environment.
Sensing & Identification: From “Seeing” to “Understanding”

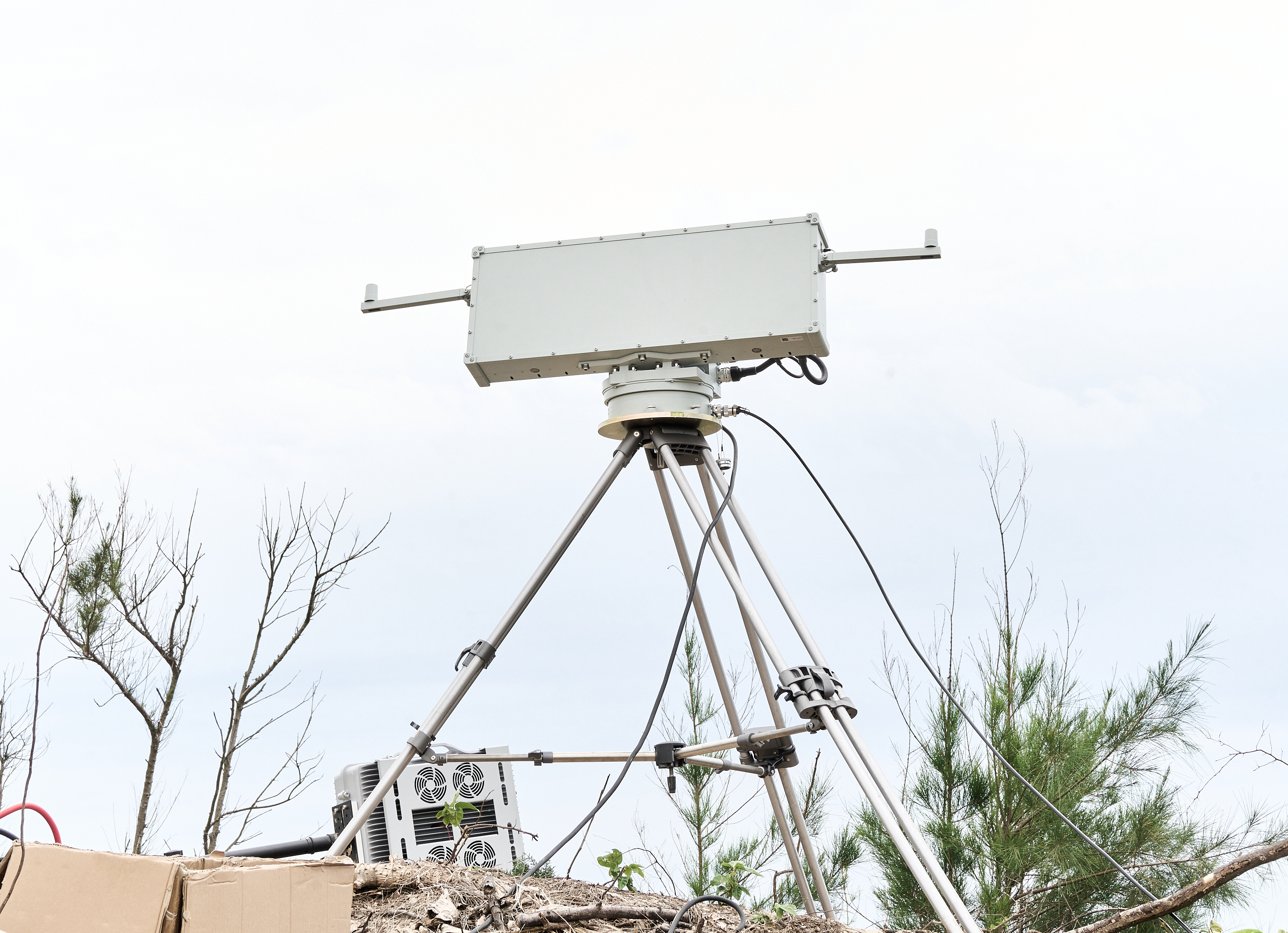

1) Radar
-
Modalities: Pulse-Doppler, CW, FMCW; phased array/mmWave/THz are accelerating.
-
Focus: High-resolution processing for low-RCS targets and clutter rejection; ML-assisted discrimination of drones vs. birds and other clutter.
2) RF Sensing
-
What it does: Passive monitoring of control, telemetry, and video links; AoA/DoA and multilateration to localize both drone and operator.
-
Strengths & limits: Long-range and type recognition, but impacted by spectrum noise, urban multipath, and “RF-silent” tactics.

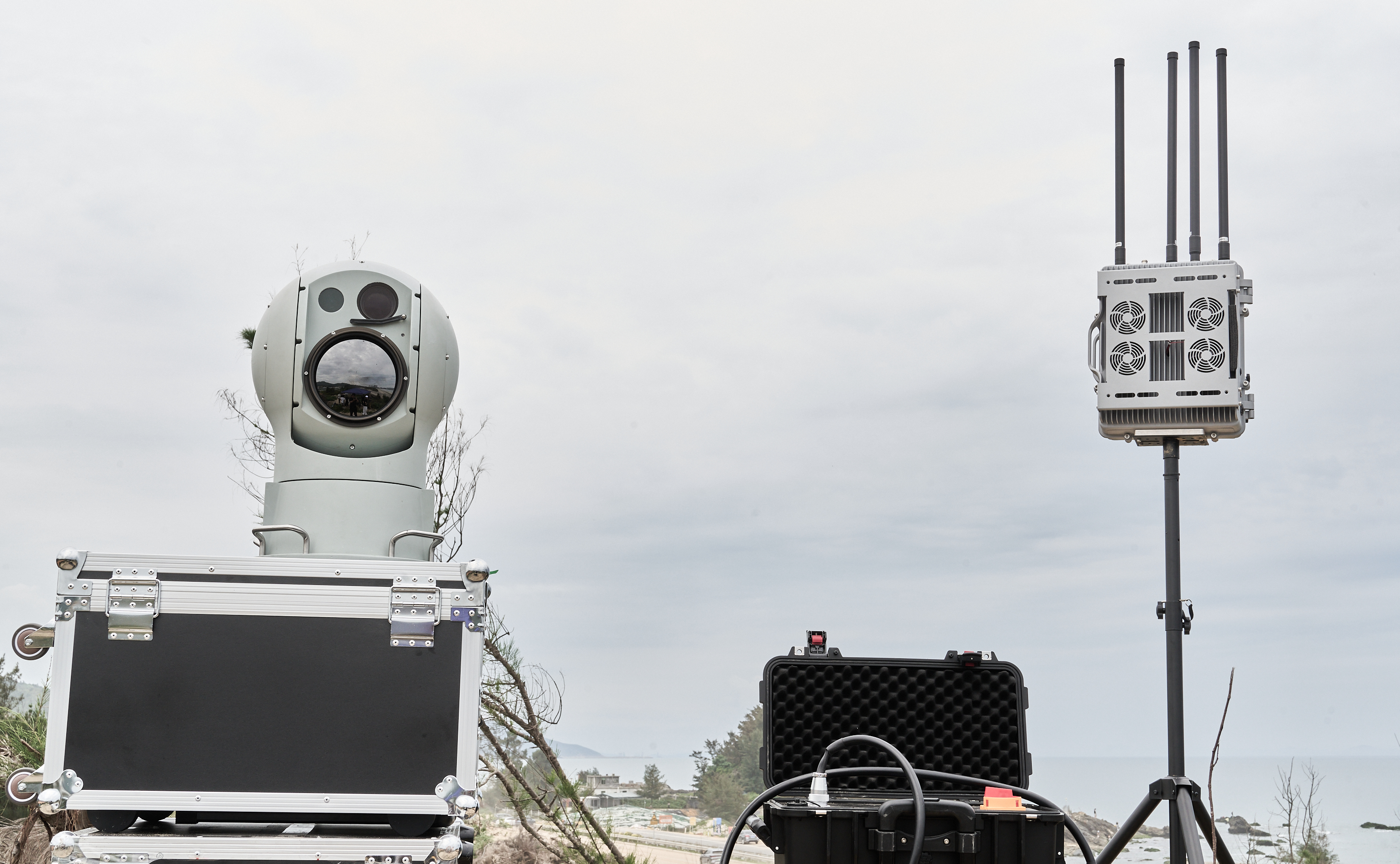

3) EO/IR
-
Role: Visual/thermal classification and terminal cueing;
-
AI: Real-time detection/tracking using CNN/Transformer families (e.g., YOLO/Faster-R-CNN). IR augments night and adverse weather.
4) Acoustics
-
Approach: Signature extraction of propeller harmonics; MUSIC and array processing improve bearing and ID.
-
Use case: Typically <1 km and best as a near-field gap-filler.
5) Multi-Sensor Fusion
-
Value: Complementary strengths, lower false/near-miss rates, and greater robustness in complex environments.
-
How: AI-enabled fusion of radar, RF, EO/IR, and acoustics for a unified picture, threat scoring, and trajectory prediction.
Defeat Options: Soft-Kill and Hard-Kill
A. Soft-Kill (Non-Physical)
-
RF Jamming: Noise/sweep/adaptive waveforms with agile power/frequency scheduling to counter hopping/spread/encryption.
-
GNSS Deception (Spoofing): Generate a controlled navigation field for off-routing or guided landing—effective but tightly regulated.
-
Protocol/Cyber Effects: Model-specific link disruption or takeover; requires threat intel and rapid adaptation.
Compliance Note: Many jurisdictions restrict jamming/spoofing (e.g., unauthorized RF jamming is illegal in the U.S.). Deployments must follow applicable law, spectrum policy, and privacy rules with clear authorization, logging, and auditability.
B. Hard-Kill (Physical)
-
Laser: Directed-energy, low collateral, low per-shot cost, ideal for precision terminal defeat.
-
High-Power Microwave (HPM): Electronic kill over an area—well suited against swarms.
-
Kinetic Intercept: Missiles/rounds/interceptor-UAS; rapid and versatile but consider cost and collateral risk.
-
Nets/Water Cannons: Non-lethal, close-in options that favor evidence collection and civil enforcement.
Technology Trends
-
AI Across the Chain: High-throughput, real-time inference for pattern learning, anomaly detection, continuous adaptation, and predictive postures.
-
Open & Modular Architectures: Standardized interfaces for sensor/effectors across vendors; faster integration and upgrades, lower lifecycle cost.
-
Maturing Directed Energy: Laser/HPM miniaturization and efficiency improve mobility and short-range protection nodes.
-
Networked & Edge-Enabled: 5G/6G, SATCOM, network slicing, and edge compute for low-latency backhaul and resilient multi-site coordination.
-
System-vs-System Against Swarms: From single-point intercept to coordinated sensing, area effectors, and task-allocation algorithms.
The Hard Problems
-
Adversary Adaptation: Hopping, encryption, autonomy, and RF silence complicate denial and takeover.
-
Swarm Scale: Concurrency and coverage requirements rise dramatically.
-
Law & Accountability: Clear authority, evidentiary logging, and privacy protection are essential.
-
Cost Asymmetry: Offense is cheap; defense is expensive—driving the need for architectural, algorithmic, and industrial efficiencies.
Where the Field Is Heading
-
Integrated Platforms: Radar/EO-IR/RF plus effectors in a unified C2.
-
Standards & Interoperability: Global/industry standards and certification to enable multi-vendor collaboration and compliant deployment.
-
Scale & Modularity: Volume manufacturing, plug-and-play modules, and service models to reduce total cost of ownership.
Compliance & Ethics (Recommended)
C-UAS serves risk reduction and public order. In civilian/sensitive contexts, prioritize non-lethal, low-collateral options; ensure clear authorization, minimal-necessary use, full-chain logging, independent audit, and robust privacy/data protection. Collaborate with regulators to evolve standards responsibly.
Conclusion
From sensing to defeat—and from algorithms to architectures—C-UAS is moving toward being smarter, more open, and more efficient. With system-level design and strong compliance foundations, low-altitude economies and public safety can grow together.
