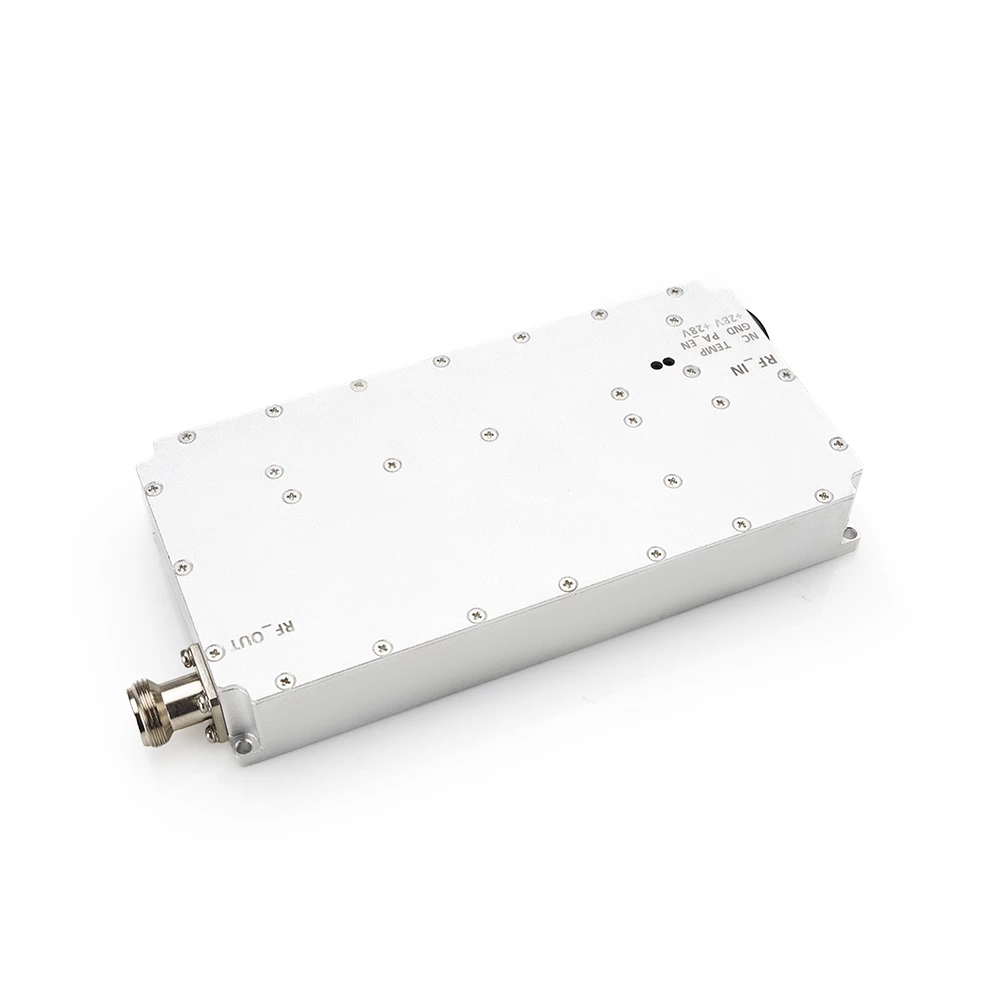

400–6000MHz 200W RF Power Amplifier Module
The 400–6000MHz 200W RF Power Amplifier Module is a high-efficiency wideband GaN amplifier for demanding RF system integration. It supports 400–6000MHz instantaneous coverage, ≥200W output power, ±1.5dB gain flatness, 28V operating voltage, 50Ω RF design, and CW signal input. With Class AB GaN architecture, stable RF output, low distortion performance, and industrial-grade reliability, this module is suitable for anti-drone RF modules, signal jamming systems, RF testing, EMC applications, broadband signal amplification, and customized RF equipment integration.

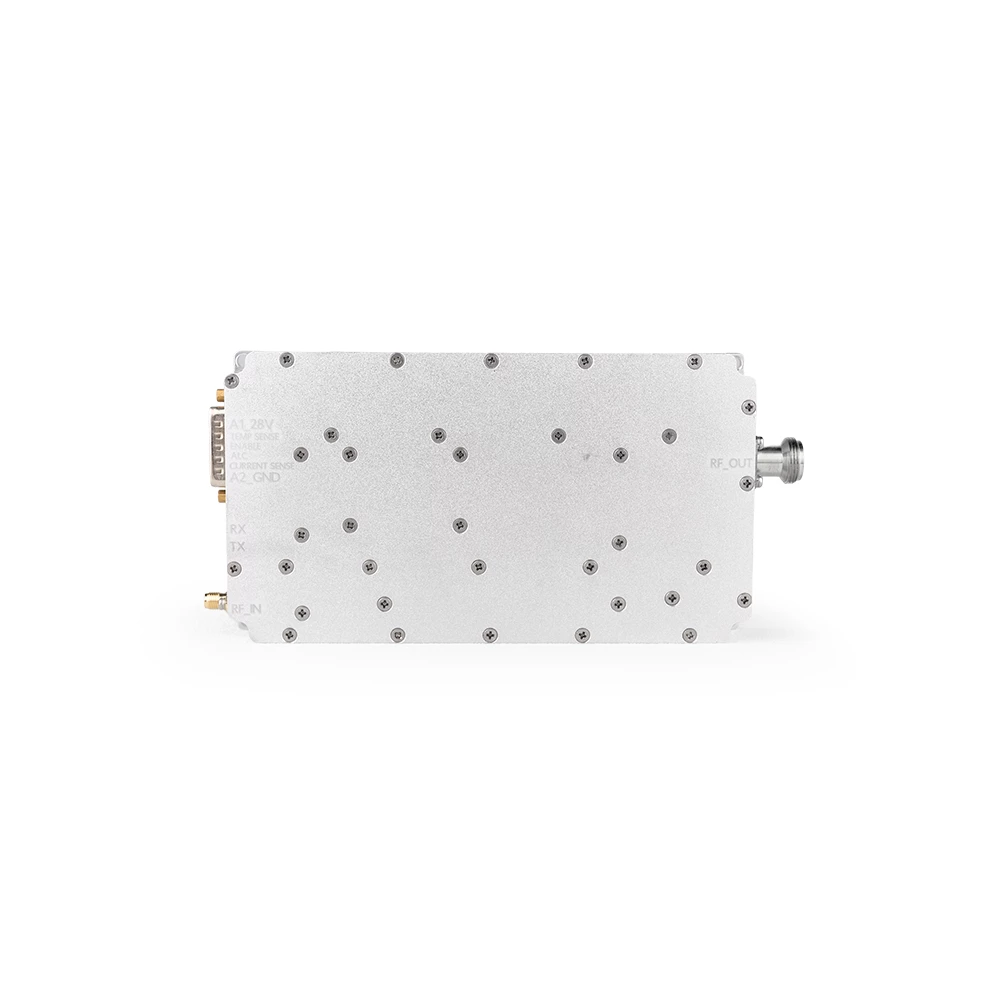

300MHz–6GHz 50/100W RF Power Amplifier Module
The 300MHz–6GHz 50/100W RF Power Amplifier Module is a wideband GaN amplifier designed for stable RF system integration. It supports 300MHz–6GHz frequency coverage, 50W / 100W peak output power options, ±3dB gain flatness, 28V / 32V operation, 50Ω matching, 0–3dBm input, and temperature monitoring. With Class AB GaN design, wide instantaneous bandwidth, high reliability, rugged structure, and industrial-grade thermal management, this module is suitable for anti-drone RF modules, signal jamming systems, RF testing, EMC applications, broadband amplification, and customized RF equipment integration.

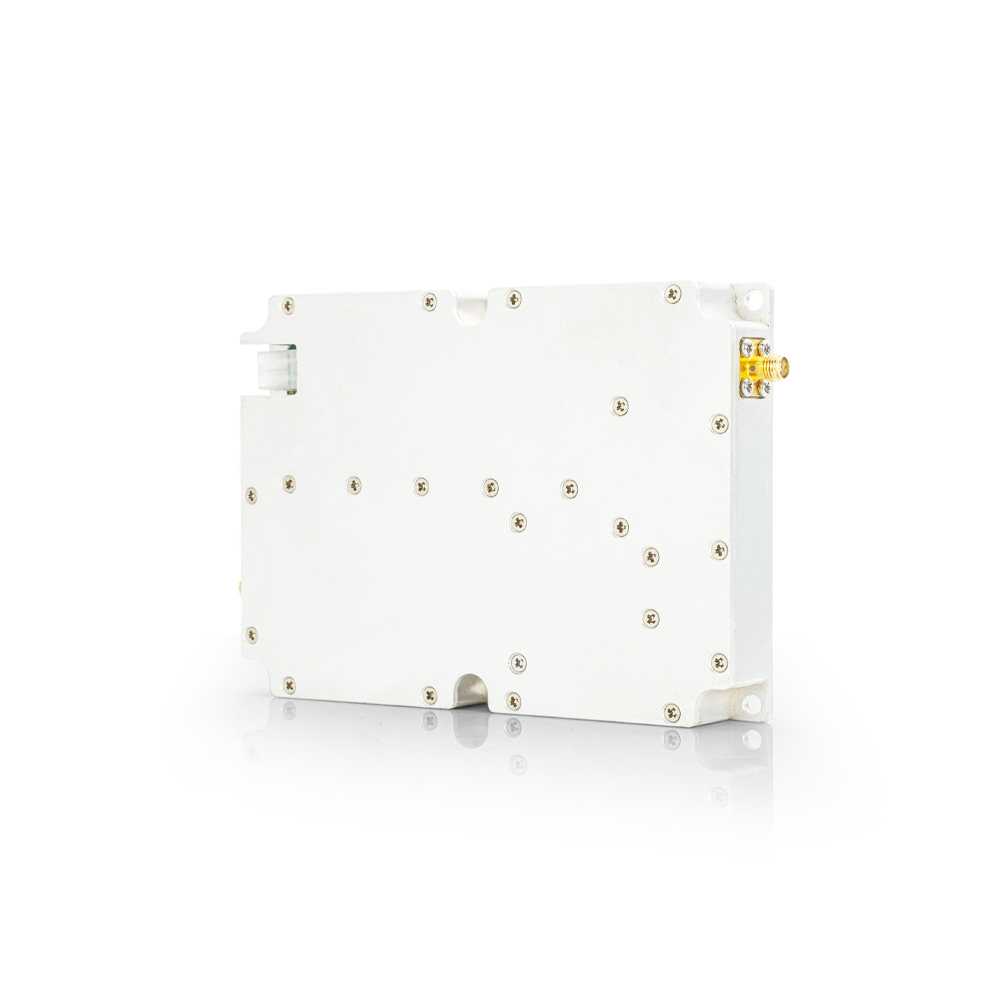

PA100W 20MHz–6GHz 100W RF Power Amplifier Module
PA100W is a high-power RF power amplifier module supporting customizable frequency bands from 20MHz to 6GHz and output power above 100W. It features 50±3dB gain, input VSWR below 1.5, N-Female RF output, DC+32V working voltage, operating current below 8A, and a compact 170 × 77 × 24.5mm structure. Designed for RF system integration, signal transmission, testing platforms and industrial RF deployment, it supports reliable operation from -20°C to 75°C.
PA300–6000MHz RF Power Amplifier Module
PA300–6000MHz is a broadband RF power amplifier module covering 300MHz–6000MHz. It operates on DC24V–28V input, provides 55±3dB gain, delivers saturated output power above 42dBm–43dBm, and supports SMA-Female RF interfaces for reliable broadband RF system integration. The module is suitable for RF signal amplification, signal transmission platforms, testing systems, communication equipment and customized RF integration projects.

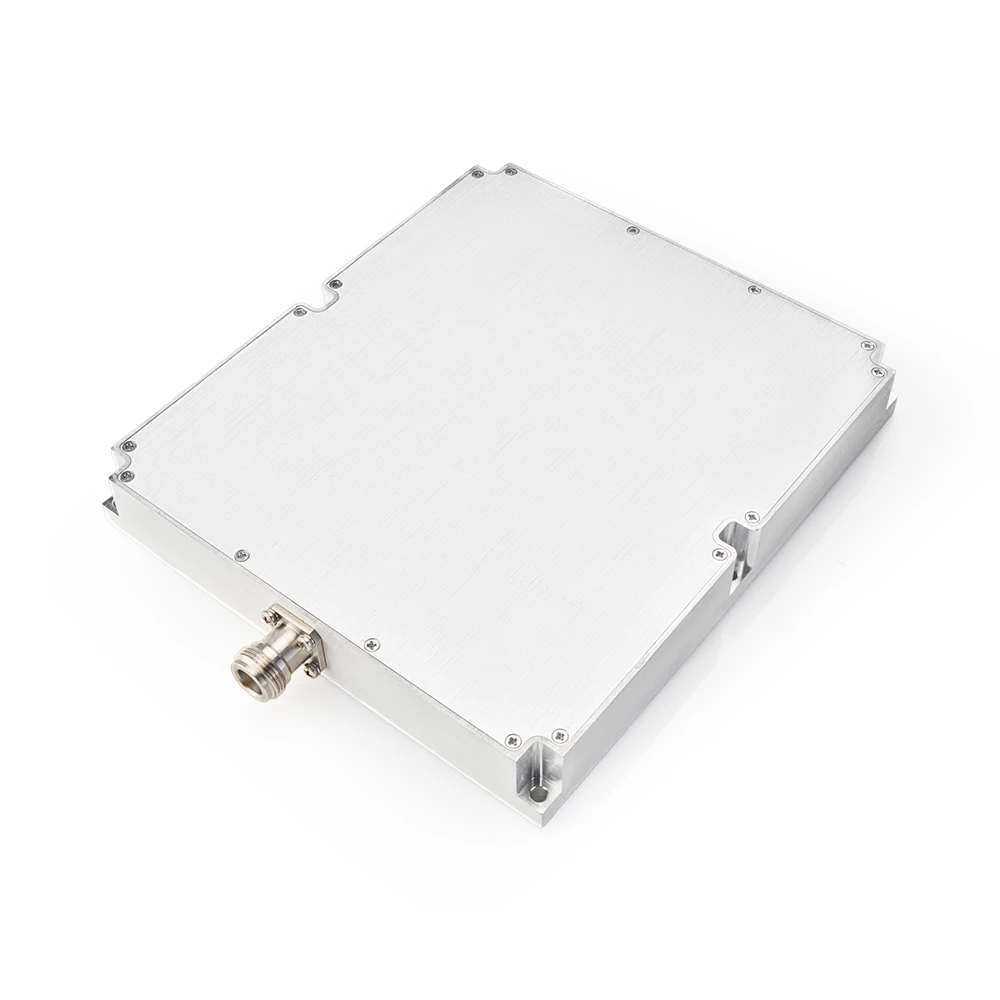

7–12GHz 100W RF Power Amplifier Module
The 7–12GHz 100W RF Power Amplifier Module is a wideband GaN amplifier designed for high-power RF system integration. It covers the 7000–12000MHz frequency range, delivers 100W output power, provides 50dB power gain, supports ±1dB gain flatness, and operates on +24V DC input. With stable RF output, protection design, and industrial-grade reliability, this module is suitable for anti-drone RF modules, signal jamming systems, RF test platforms, EMC applications, broadband amplification, and customized microwave system projects.
7–13GHz 50W RF Power Amplifier Module
The 7–13GHz 50W RF Power Amplifier Module is based on the PAM-7000-13000-50 platform and designed for high-power RF system integration. It covers 7000–13000MHz, delivers 50W saturated output power, provides 47dB gain, and uses GaN technology with integrated protection circuits. With stable RF output and rugged protection design, this module is suitable for anti-drone RF modules, signal jamming systems, EMC applications, RF testing, measurement platforms, and customized microwave system integration.
10.7–12.7GHz 50W RF Power Amplifier Module
The 10.7–12.7GHz 50W RF Power Amplifier Module is a high-frequency GaN power amplifier designed for Ku-band RF system integration. It covers the 10.7–12.7GHz frequency band, supports CW and pulsed input, provides stable 50W minimum output power, and operates on +28V power supply. With high gain stability, thermal protection, and integrated protection circuits, this RF amplifier module is suitable for anti-drone system modules, RF test platforms, jamming equipment integration, EMC applications, and customized microwave system projects.

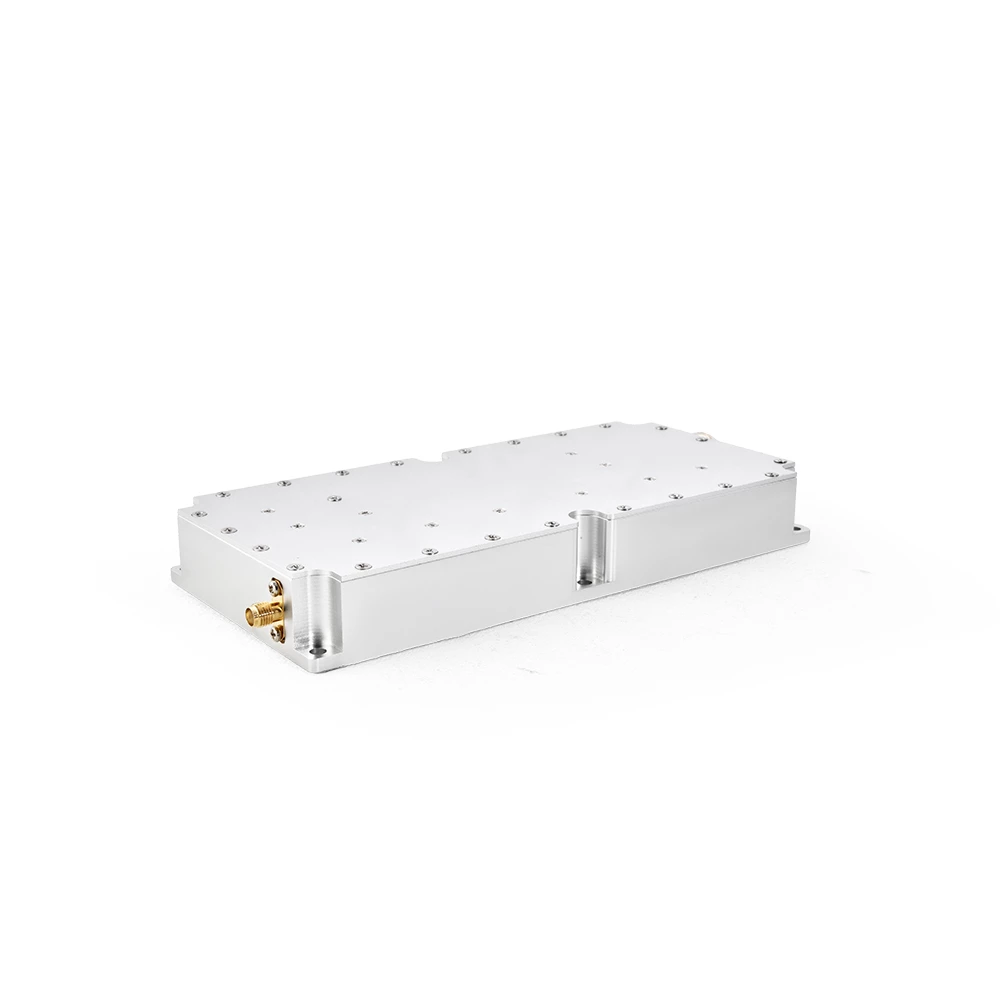

1150–1310MHz RF Power Amplifier Module
The 1150–1310MHz RF Power Amplifier Module is designed for high-stability RF system integration in L-band applications. It covers the 1150–1310MHz frequency range, delivers Psat ≥53dBm output power, provides >55dB small signal gain, and operates on +28V power supply with working current below 15A. With CW signal input, built-in isolator protection, VSWR protection, high gain output, and stable RF performance, this module is suitable for anti-drone RF modules, RF test platforms, signal amplification, EMC applications, and customized RF system projects.

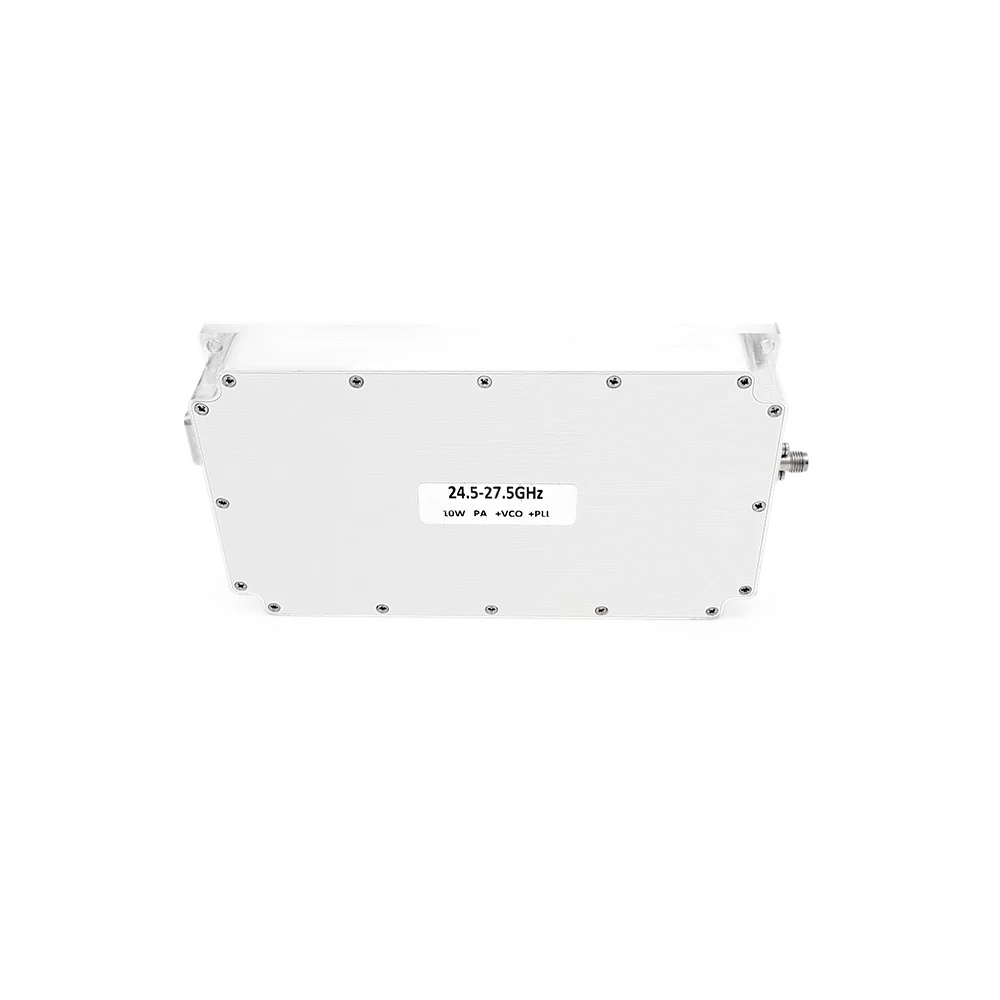

24G RF Power Amplifier + VCO Module
The 24G RF Power Amplifier + VCO Module is based on the HPA-111 platform and covers 24.25GHz to 27.5GHz for frequency sweep RF system integration. It delivers 40±1.5dBm saturated output power, supports <±1.5dB gain flatness, and operates on 28V/2.5A. With integrated temperature, voltage, current, and output VSWR monitoring, this RF amplifier + VCO module is suitable for anti-drone RF modules, millimeter-wave test platforms, frequency sweep signal systems, EMC applications, and customized 24GHz microwave equipment integration.
10WPA 5925–7125MHz RF Power Amplifier Module
The 10WPA 5925–7125MHz RF Power Amplifier Module is based on the HPA-110 platform and designed for frequency sweep RF system integration. It covers the 5925–7125MHz frequency range, supports frequency sweep input, delivers 40±1dBm saturated output power, supports <±1dB gain flatness, and operates on 28V/1.5A. With temperature, voltage, current, and output VSWR monitoring, this module provides stable RF performance for anti-drone RF modules, RF testing, signal amplification, EMC applications, and customized microwave system integration.
DDS 100MHz–6GHz Digital Signal Source Module
The DDS 100MHz–6GHz Digital Signal Source Module is a programmable RF signal generation board for anti-drone systems, RF test platforms and signal simulation equipment. It supports up to 350MHz bandwidth, command-configurable frequency and bandwidth, ASK / FSK / PSK modulation, configurable sweep interval and dwell time, and 30dB output power adjustment. With DC 9–28V / 1A input, SMA RF connector, dual UART interfaces, -40℃ to 85℃ operating temperature and a compact 65mm × 95.5mm board size, it is suitable for custom RF module integration and B2B system projects.
