X20 Anti Drone System
The X20 Anti-Drone System delivers over 1000W of jamming power, enabling a 500–3000m effective defense range for continuous 24/7 protection. Supporting full-band coverage from 100 MHz to 6 GHz with customizable frequency configurations, it integrates efficient heat dissipation and multi-channel suppression to counter a wide variety of UAV threats. Engineered for fixed-site security and long-duration missions, the X20 ensures stable, comprehensive, and reliable airspace protection.
The X20 Anti-Drone System is engineered for uninterrupted 24/7 operation, maintaining stable performance in long-duration missions. Its high-power architecture delivers over 1000W of output, supporting strong suppression capability across a 500–3000m protection radius. With extensive multi-band coverage from 100 MHz to 6 GHz and flexible frequency customization, the X20 ensures broad-spectrum defense against diverse UAV control, navigation, and data links.
24/7 OPERATION
HIGH POWER OUTPUT
FULL COVERAGE
Power:≥1000W
Signal Type:DSSS / FHSS
Working Time:≥ 7×24 hours
Temperature:-20°C to 70°C
Range:500–3000 meters
Color:Silver / Green
Dimensions:720 × 530 × 440 mm
Weight:80 kg
Power Supply:AC 110–220V / DC 28V
Frequency Bands:100–200 MHz 200–300 MHz 300–400 MHz 410–490 MHz 500–600 MHz 600–700 MHz 720–840 MHz 830–940 MHz 950–1050 MHz 1170–1280 MHz 1340–1450 MHz 1550–1620 MHz 2300–2400 MHz 2400–2500 MHz 3200–3300 MHz 3300–3400 MHz 3400–3500 MHz 5150–5350 MHz 5725–5850 MHz 5850–6000 MHz
Customization:Bands can be customized from 20 MHz to 6 GHz

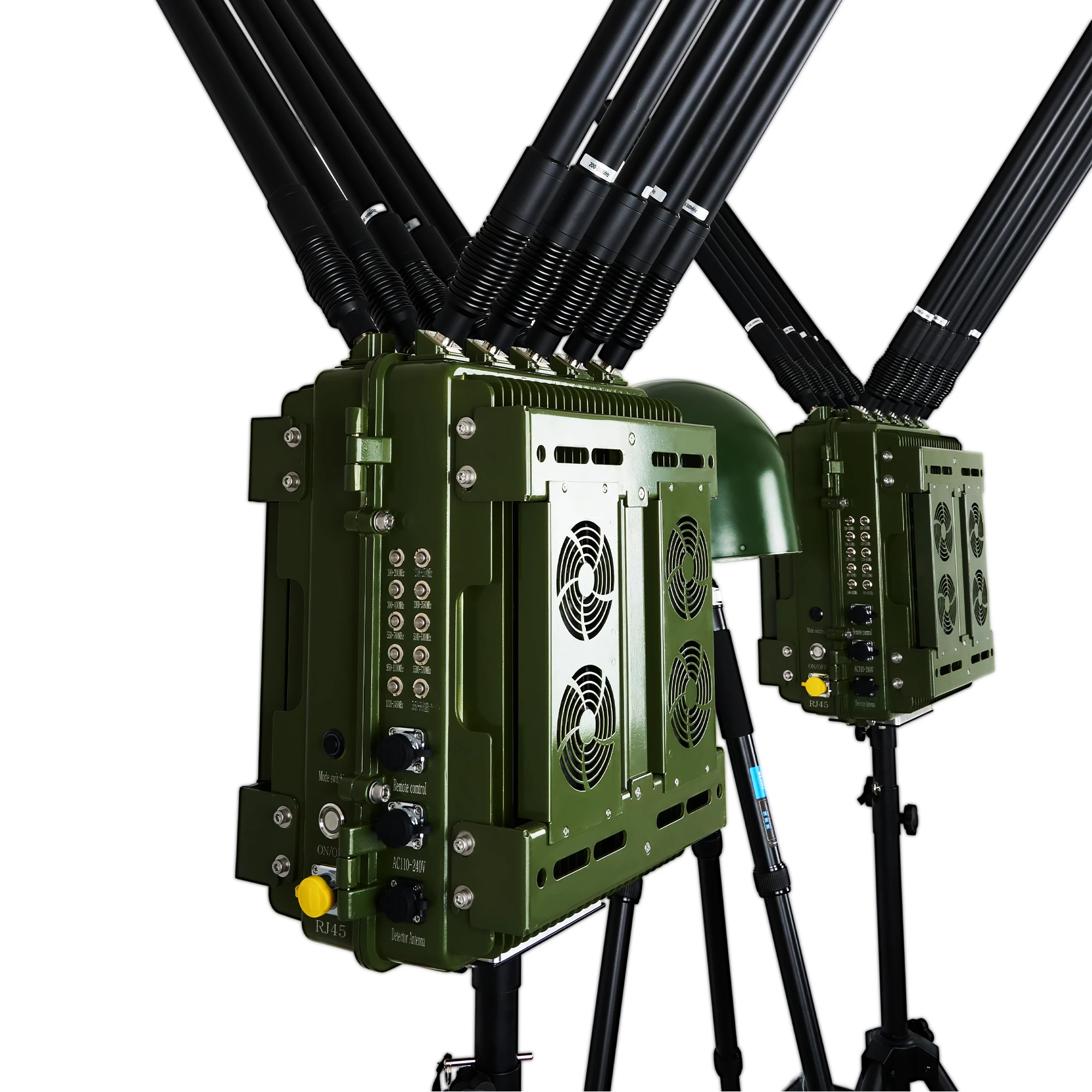

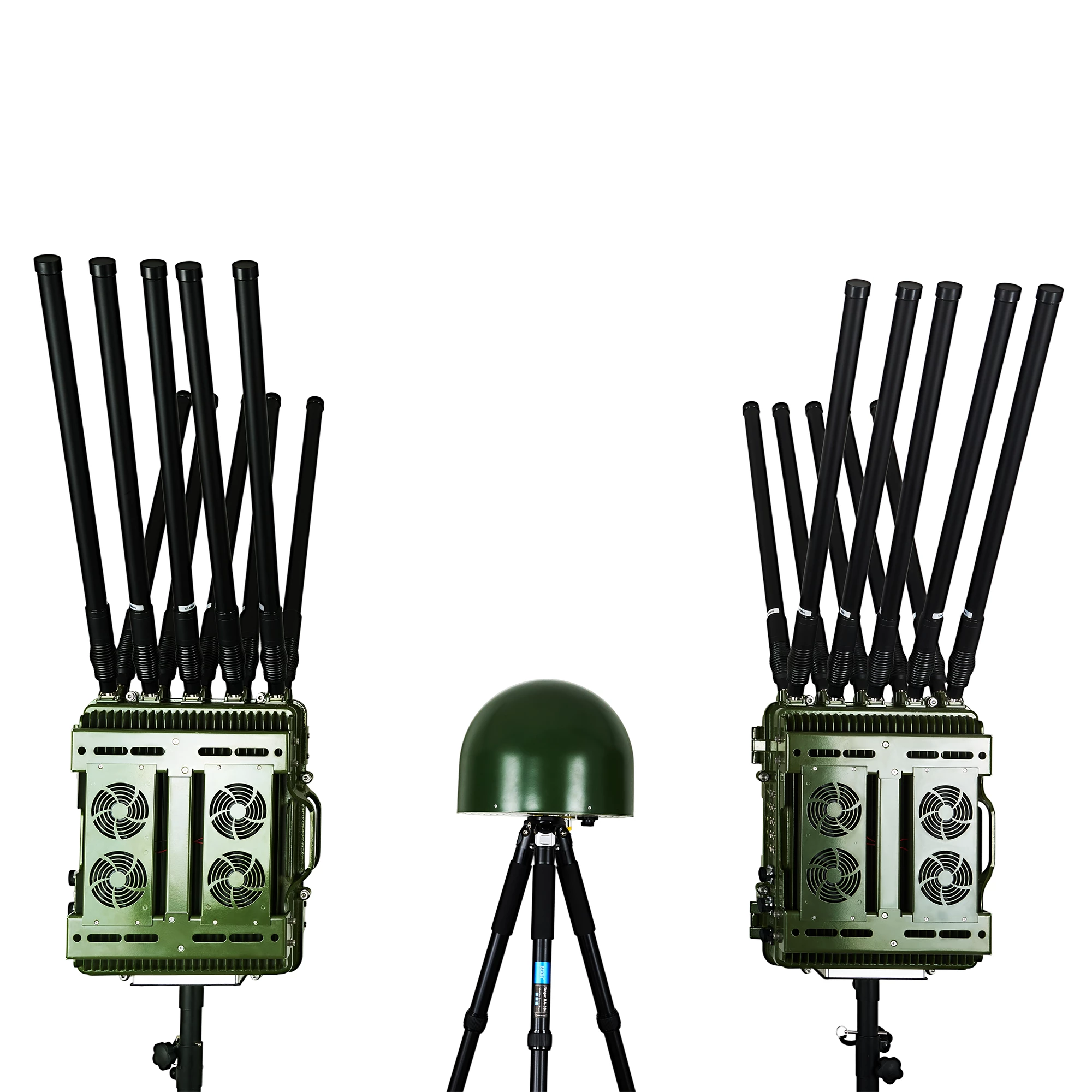

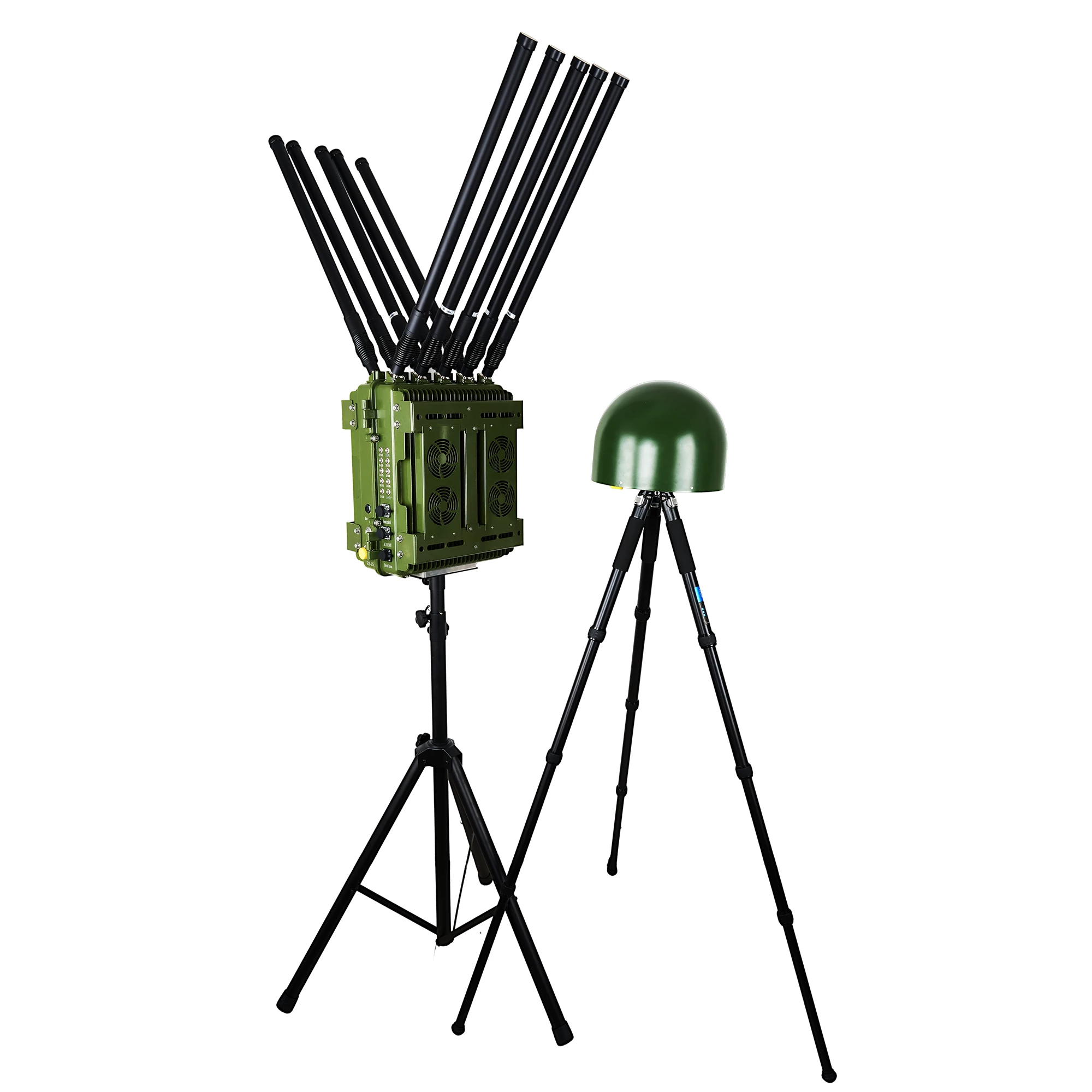

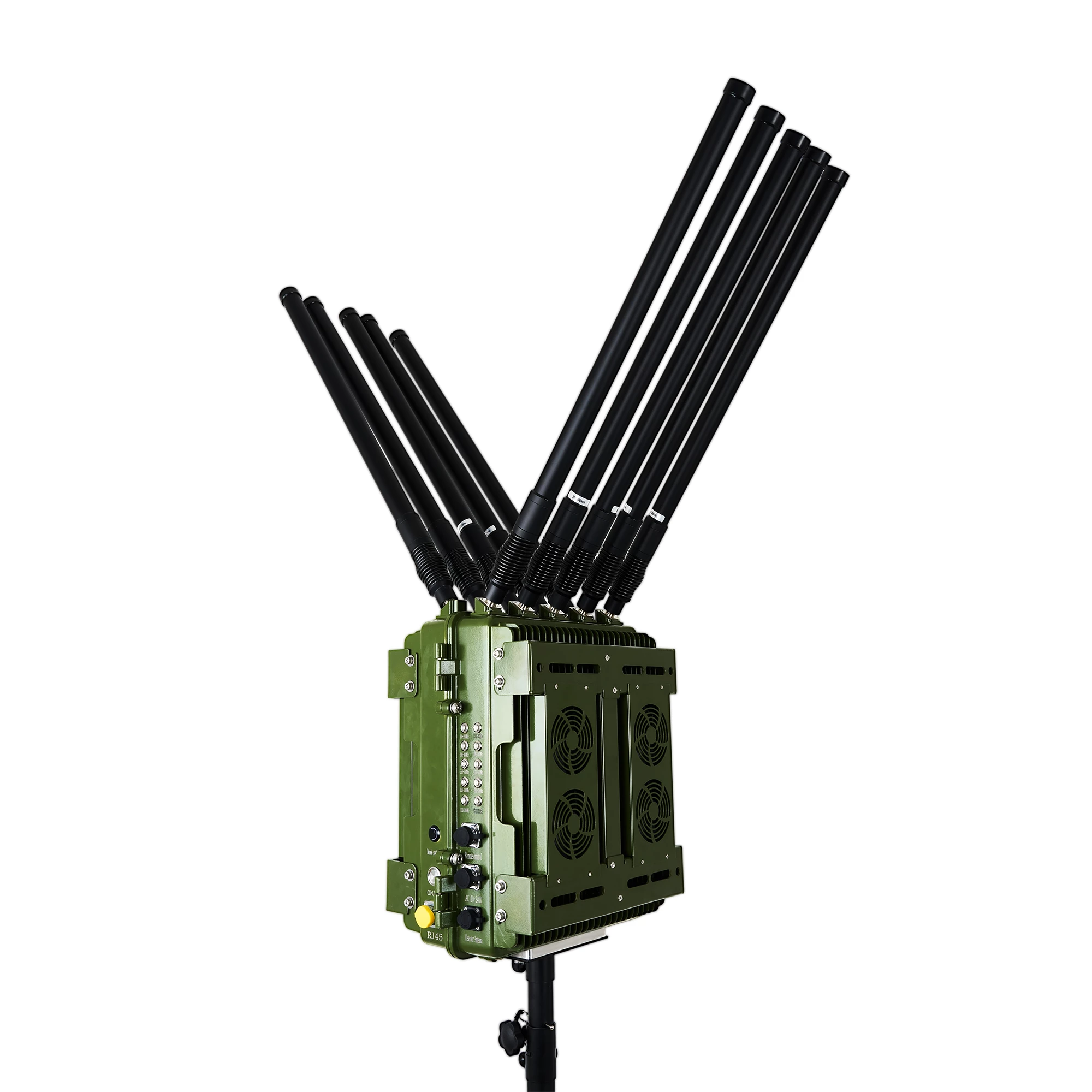

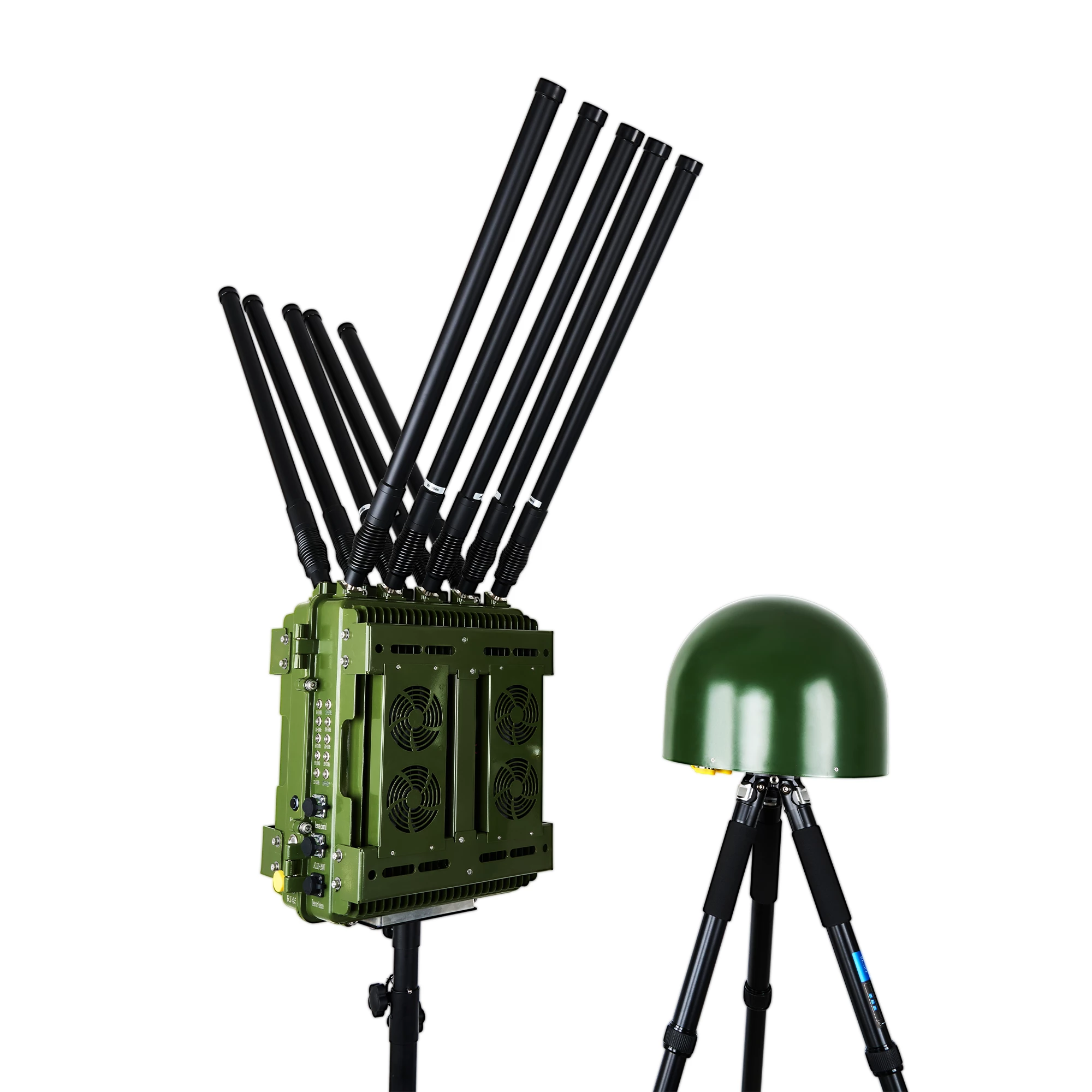

PHOTO SUPPLEMENT

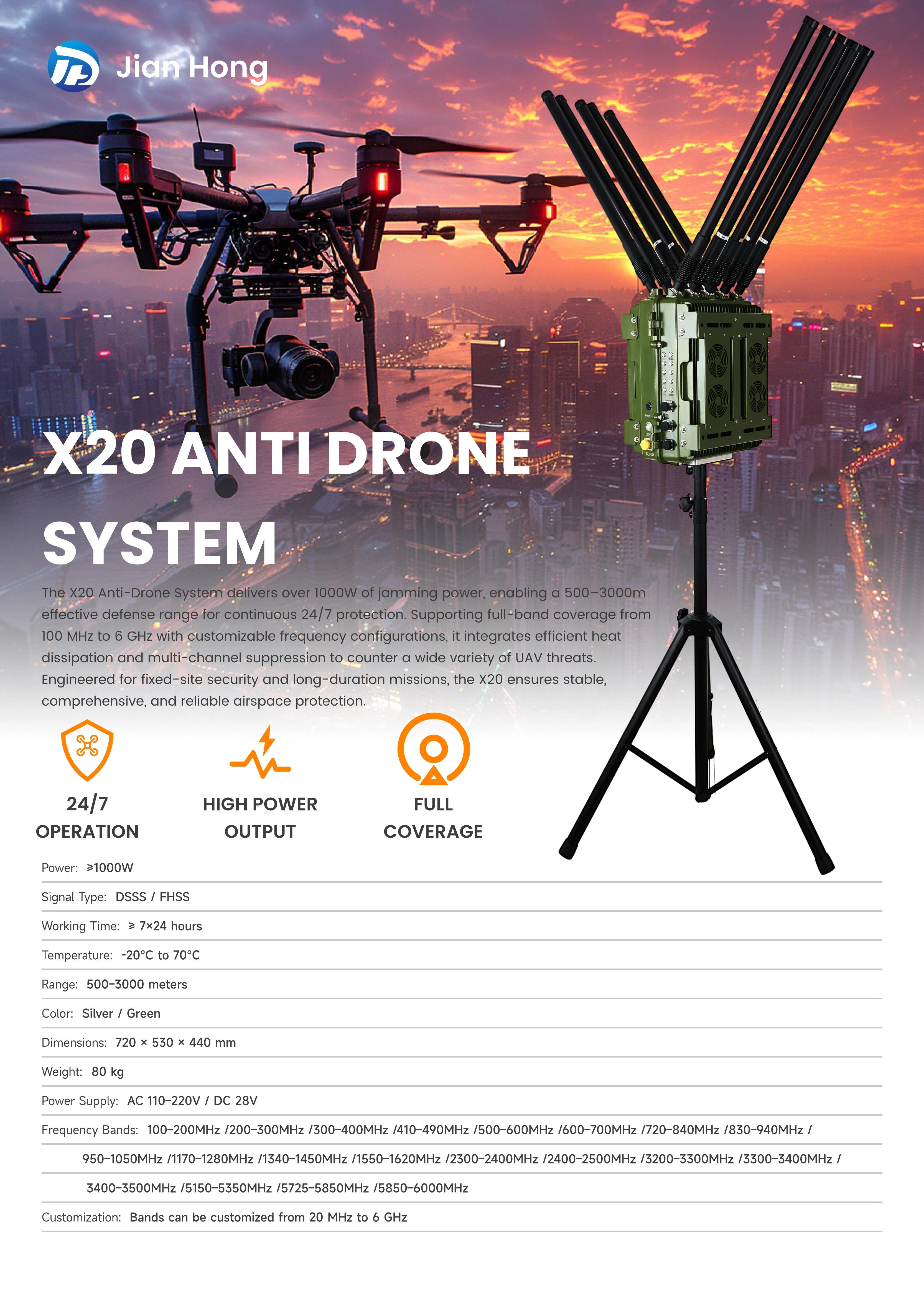

INFO IMAGE 1 1
INFO IMAGE 1 2
