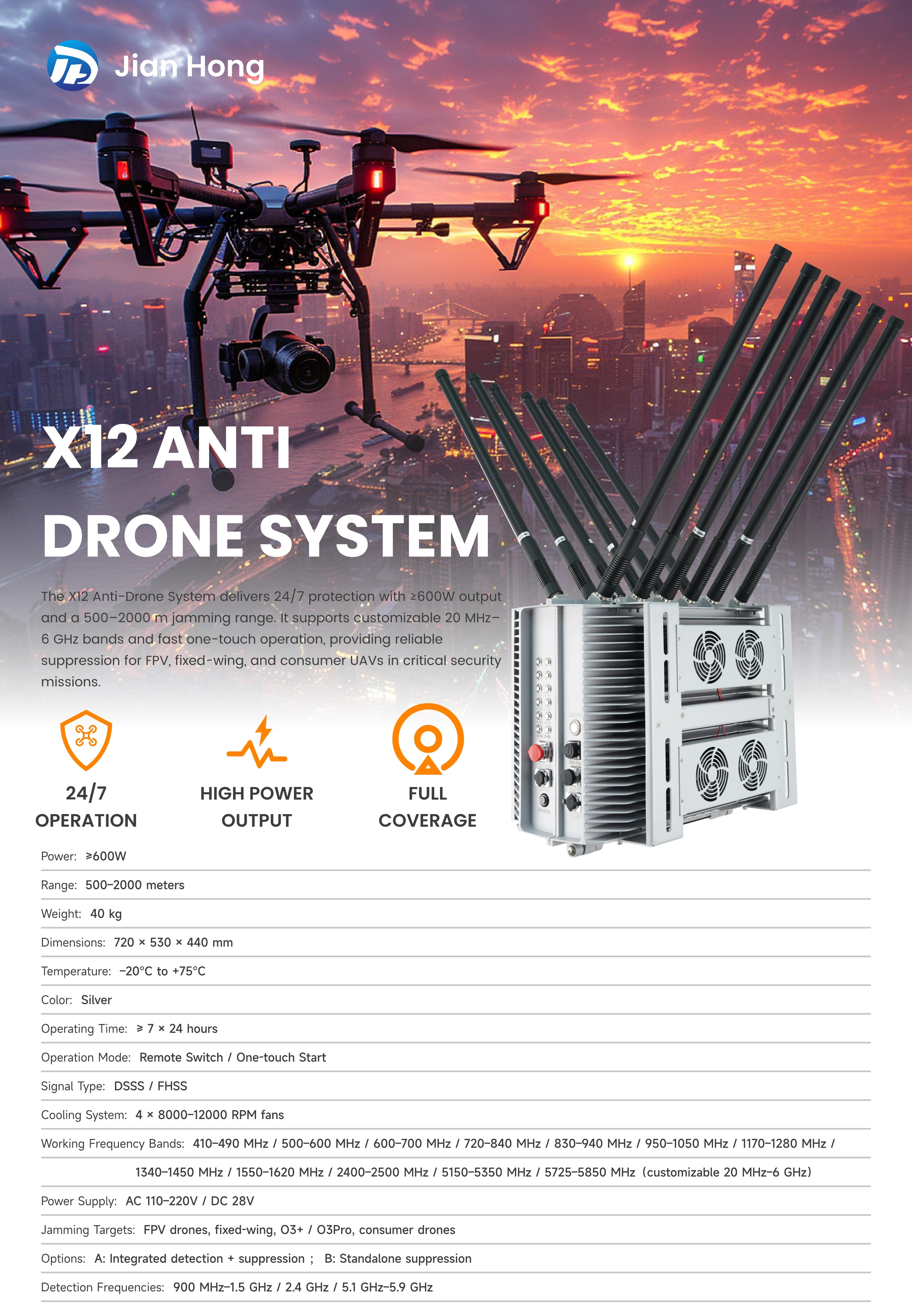

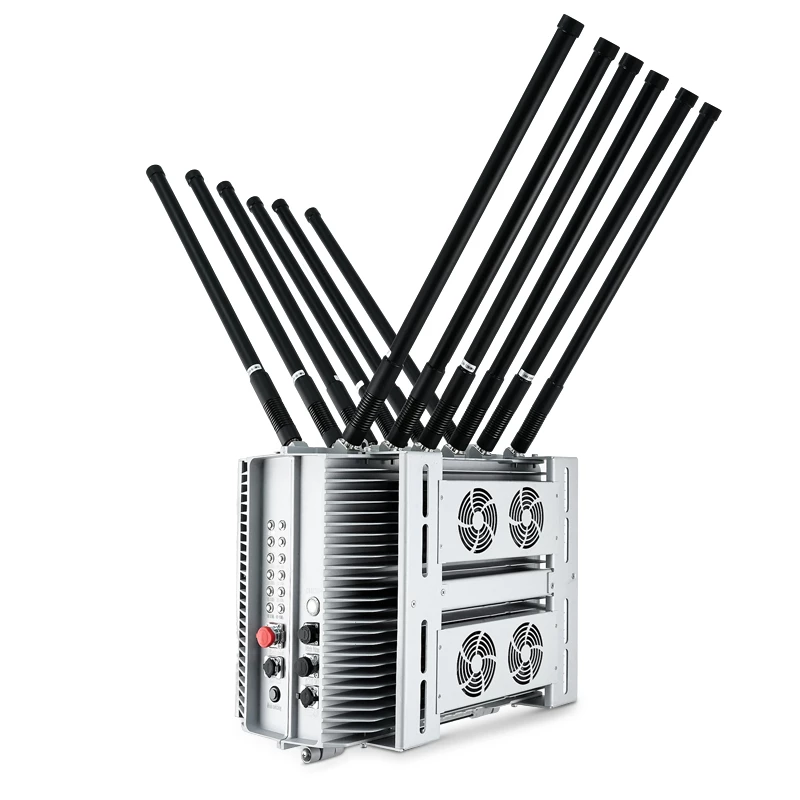

X12 Anti Drone System
The X12 Anti-Drone System is built for continuous 24/7 protection, delivering ≥600W of powerful output to achieve an effective jamming range of 500–2000 meters. It supports wide-range, customizable frequency bands from 20 MHz to 6 GHz, ensuring full-spectrum coverage against FPV drones, fixed-wing models, O3/O3 Pro, and other consumer UAVs. Equipped with independent switches, one-touch start, and remote control operation, the X12 offers fast deployment and reliable suppression performance for critical infrastructure, patrol teams, and perimeter defense missions.
The X12 Anti-Drone System is engineered for uninterrupted 24/7 operation, delivering reliable protection in demanding environments. Its ≥600W high-power output ensures strong and effective jamming performance, achieving a 500–2000m suppression range. With full-band coverage across multiple customizable frequencies (20 MHz–6 GHz), the X12 provides comprehensive countermeasures against a wide range of drone threats, making it a robust solution for critical airspace security.
24/7 OPERATION
HIGH POWER OUTPUT
FULL COVERAGE
Power:≥600W
Range:500–2000 meters
Weight:40 kg
Dimensions:720 × 530 × 440 mm
Temperature:–20°C to +75°C
Color:Silver
Operating Time:≥ 7 × 24 hours
Operation Mode:Remote Switch / One-touch Start
Signal Type:DSSS / FHSS

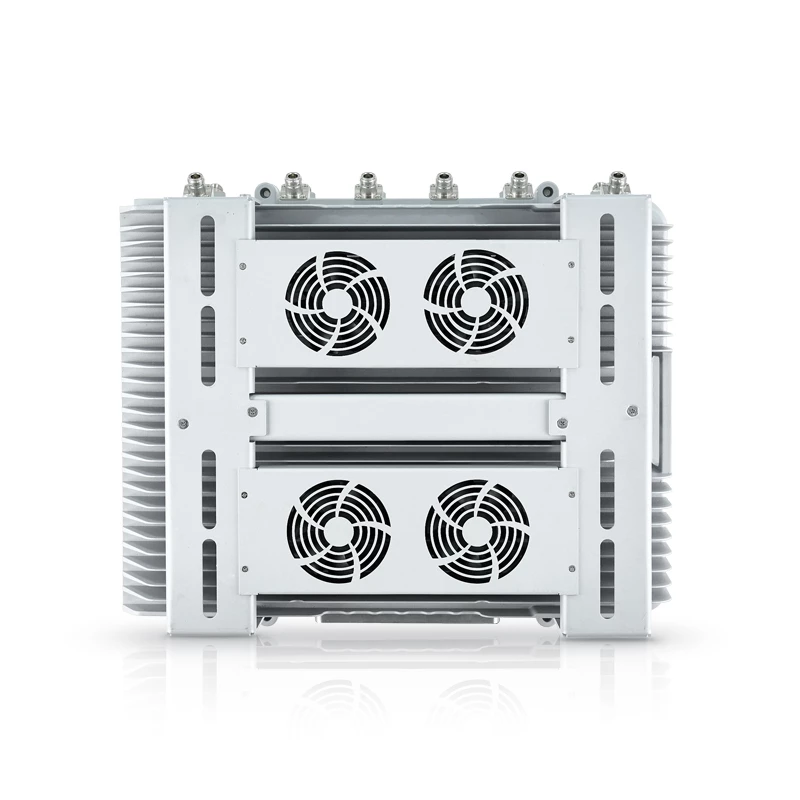

Cooling System:4 × 8000–12000 RPM fans
Working Frequency Bands:410–490 MHz / 500–600 MHz / 600–700 MHz / 720–840 MHz / 830–940 MHz / 950–1050 MHz / 1170–1280 MHz / 1340–1450 MHz / 1550–1620 MHz / 2400–2500 MHz / 5150–5350 MHz / 5725–5850 MHz（customizable 20 MHz–6 GHz）
Power Supply:AC 110–220V / DC 28V
Jamming Targets:FPV drones, fixed-wing, O3+ / O3Pro, consumer drones
Options:A: Integrated detection + suppression ； B: Standalone suppression
Detection Frequencies:900 MHz–1.5 GHz / 2.4 GHz / 5.1 GHz–5.9 GHz
